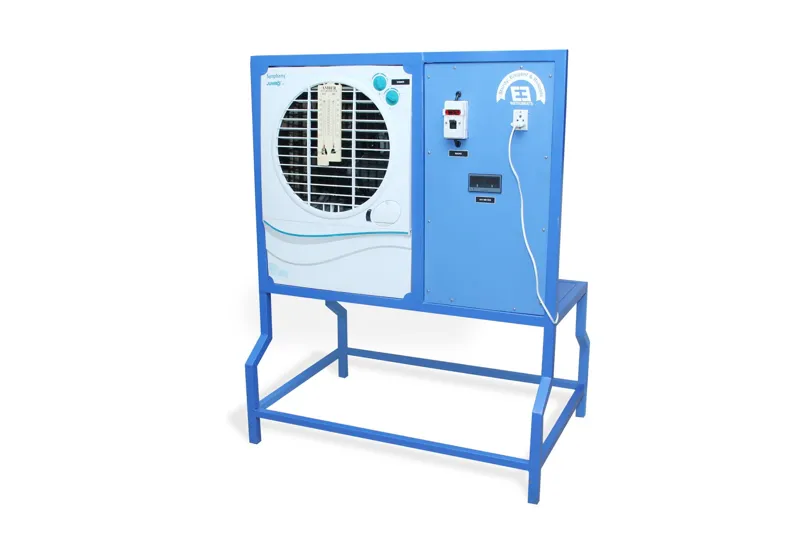

DESERT AIR COOLER TEST RIG

A Desert Cooler works on the principle of "Evaporative Cooling", which is one of the earliest methods of conditioning of houses. It is a process of adiabatic saturation of air when a spray of water is made to evaporate into it without transfer of heat from or to the surroundings. The initial investment cost of such a system is low and its operation is simple and economical as compared to refrigerated air conditioning system.

Specifications of the test rig:-

Ø  Air displacement fan - Axial flow type

Ø  Pump for spray of water - Provided.

Ø  Inlet duct 250 * 250 mm - provided· Out let duct 250 * 250 mm - provided

Ø  Measurement of dry and wet temperatures - Provided

Ø  Digital temperature indicator - provided

Ø  Support structure : Stainless steel frame

Ø  Arrangement for water storage and drain - Provided with ball valve and drain plug.
