DOMESTIC REFRIGERATOR TRAINER-

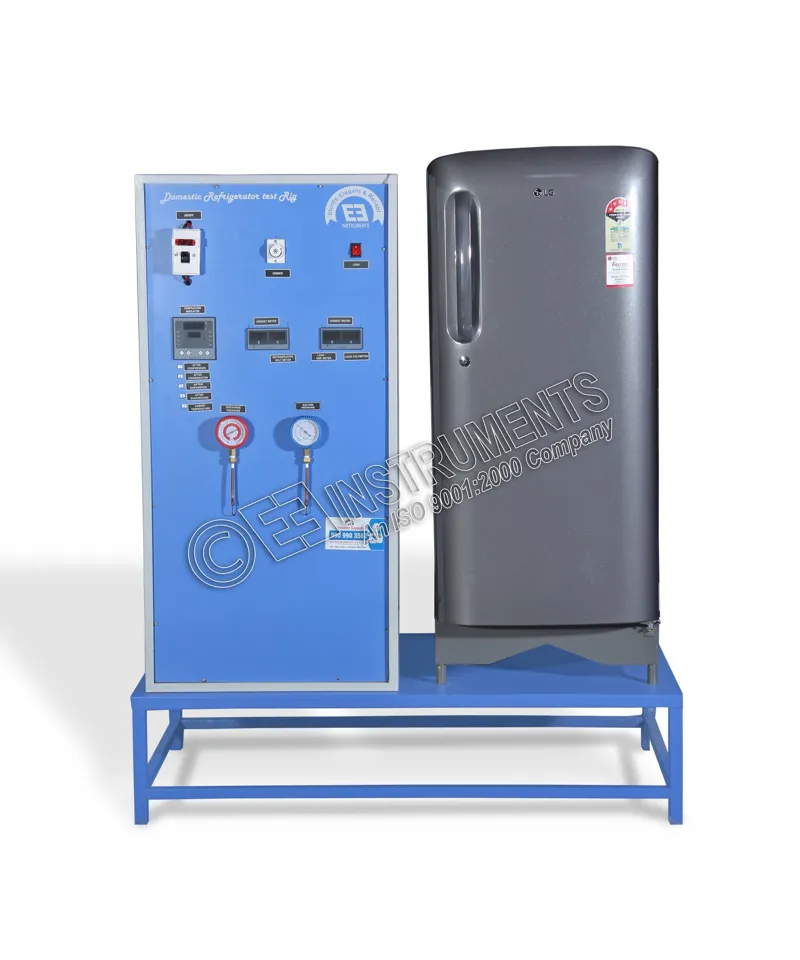

Refrigeration Trainer enables students to study and understand Vapour Compression Cycle, its components, principle and working. All the components are mounted on rigid steel frame. The trainer consists of a hermetically sealed compressor; natural convection air‑cooled condenser, filter / drier, expansion device and evaporator. Separate pressure gauges are provided to record suction and discharge pressures and digital temperature indicators for various temperatures. The refrigerant used is R‑134a which is environment friendly.

1. CAPACITY 165 LITERS MINIMUM
2. Refrigerator Standard make.
3. Power Source  220‑ 240 V ; 50HZ; 1 Phase, AC
4. Freezer Ice Trays Provided Component Shelf provided
5. Freezer door rack.
6. Storage Shelves  Provided  (2 Shelves)
7. Shelf‑half adjustable/full folding provided
8. Shelf Eggs provided
9. Shelf Bottle provided
10. Crisper Provided
11. Glass Shelf Provided
12. Heater for load Provided.
13. Energy Meter Compressor Provided
14. Energy Meter Heater Provided
15. HP/LP Cutout Provided
16. Pressure Gauges 2 Nos Provided ‑  1 No. for suction gas pressure,  1 No for discharge gas pressure
17. Digital Temperature Indicator with selector to display refrigerant  temperatures at salient points.
18. Refrigerant R‑134 a non CFC & Environment friendly.


SET OF EXPERIMENTS :

1. To study construction and working of domestic refrigerator
2. To evaluate cooling capacity of the refrigerator at the ambient temperature.
3. To evaluate the actual Coefficient of Performance of the refrigeration system.
4. To evaluate the theoretical Coefficient of Performance of the refrigeration system.
5. To plot the cycle on P‑H chart.
