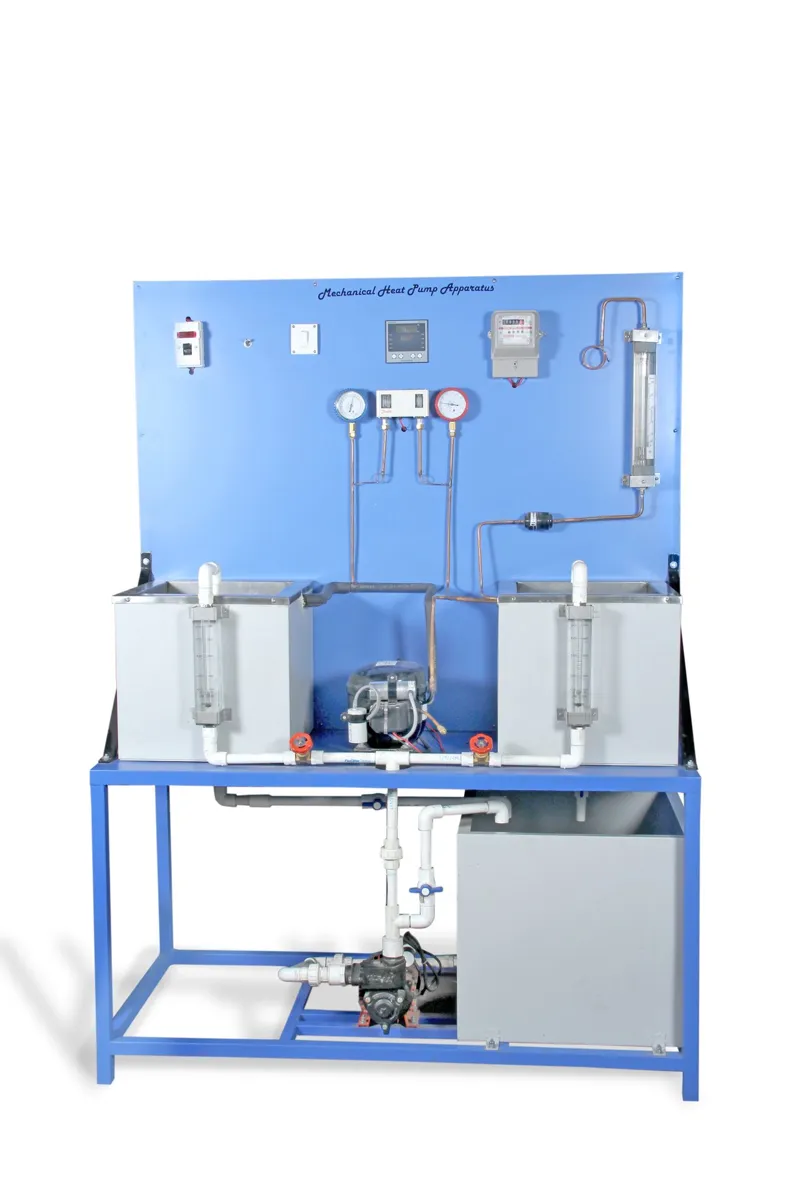

MECHANICAL HEAT PUMP TRAINER

[CAPACITY: 500 WATT, REFRIGERANT: R-134 a]

List of Experiments:

1. To study various components and controls used in heat pump.
2. To evaluate gross heat rejection of the heat pump.
3. To calculate actual & theoretical C.O.P. of the system.
4. To plot system performance on p-h chart.

The heat pump test rig is a self-contained unit. All the components are mounted such that its operation and working can be easily understood. The required controls for Temperature, pressure, and overload are provided. It uses a hermetically sealed Compressor, heat rejection chamber, heat absorption chamber, and apparatus to measure the heat gain and heat loss.

1. Rating 500 Watts gross heat rejection at rated test conditions
2. Compressor Hermetically sealed. Emerson / Tecumseh / Danfoss or equivalent make.
3. Heat rejection calorimeter Water cooled provided
4. Heat absorption Calorimeter Immersed tube; Direct expansion type
5. Calorimeter Insulation Nitrile rubber foam Provided.
6. Drier/ filter Provided
7. Expansion device Capillary Tube
8. Refrigerant R-134 a
9. HP / LP Cut-out Danfoss/Alco/ Castle or equivalent make.
10. Thermostat with Indication & 6 channel digital display
11. Dial pressure gauges provided
12. Refrigerant Flow Glass tube Rota meter
13. Water flow Glass tube Rota meter
14. Supply 230 Volts, 50 Hz, 1 phase.
15. input power 600 Watts.
16. Rated current 3.5 Amps.
17. Fan motor Induction type
18. Energy meters Provided for compressor
19. Fabricated from 1.2 mm thick CRCA
20. Outer finish Powder coating
21. Size : 1000 x 600 x 1100 ( L X B X H ) mm
