REFRIGERATION DISPLAY BOARD-

DISPLAY BOARD CONTAINING VARIOUS MODELS & CONTROLS USED IN RAC.

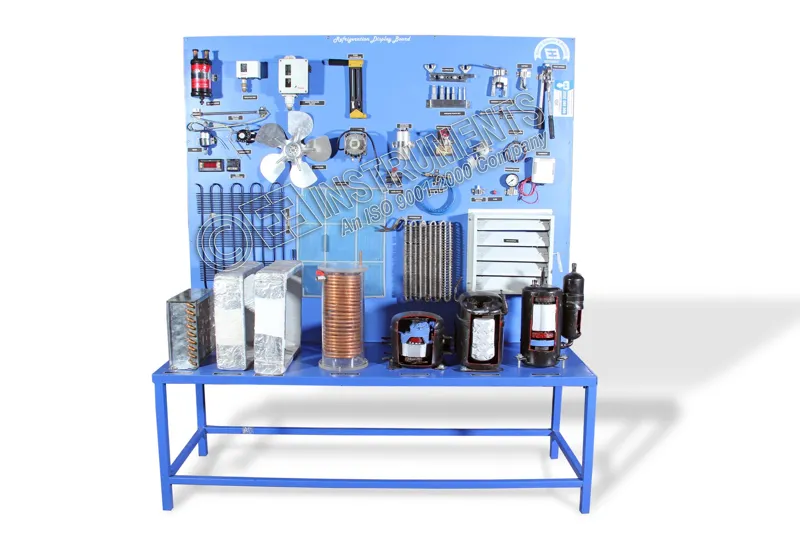

The display board consist nearly all the components used in refrigeration system. The arrangement of parts is such that, all the parts are visible and the construction can be easily understood. The components are mounted rigidly on the powder coated steel frame. Nomenclature helps to identify each component.

SYSTEM COMPONENTS :

1. Shell & Tube Condenser, Fan Motor, Drier/ filter / accumulator
2. Evaporator, Duct with acoustic insulation, PUF insulation, Air Damper, AC Supply air grills, HP / LP Cut‑out, Air Filter, Condenser fan blades, Natural convection condenser, Forced convection condenser coils, No‑frost Coil, Capillary tube, Duct with thermal insulation, Glass wool insulation, Solenoid valve, Impellars

CONTROLS AND INDICATIONS :

1. Thermostat, Pressure gauge, Heating thermostat, Sling Psychrometer
2. Humidistat, Water Pressure Switch, Hand valve, Temperature indicator cum controller

ELECTRICAL ACCESSORIES :

1. Selector Switch, Start / Run Capacitor, Resistor / Fuse / Timer
2. De‑frost heater

CUT‑SECTIONS :

1. Automobile compressor, Rotary compressor Hermetically sealed reciprocating compressor.

TOOLS & TACKLES :

1. Tube bender & cutter, Flare Fittings, Charging line, Spring bender Flaring bar & yoke, Swedging punch set, Sweding & flaring tools.
