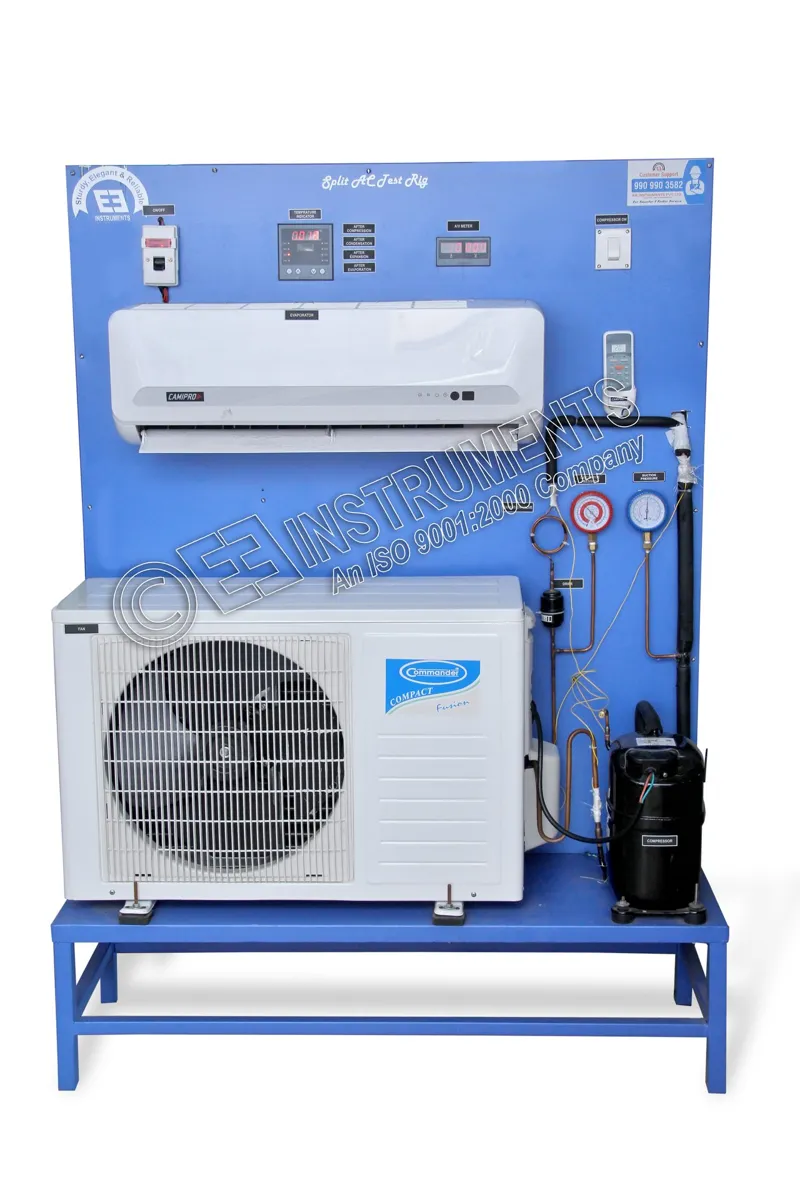

SPLIT AC TRAINER-

Description:

The Split Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the Split air conditioning system.

Experimentation:

1. To study the Vapor Compression air conditioning cycle.
2. To Calculate Co-efficient of performance-(COP) by the use of P-H diagram.


Utilities Required:

1. Electric supply Single Phase, 220 V AC,50 Hz,10 Amp.
2. Floor area: 2 m x 1m
