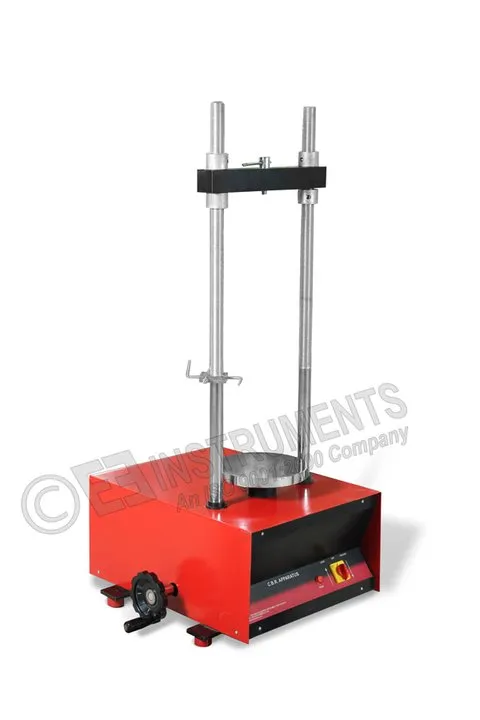

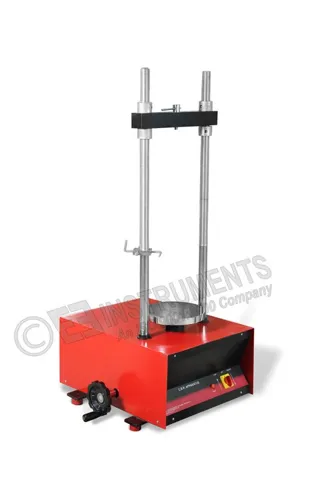

CBR/UNCONFINED LOAD FRAME-3 SPEED-
Model Number : TM-194.1
Applications
Load Frames are useful device employed for application of compression and penetration loads required for various tests such as unconfined compression test, Triaxial Shear test, California Bearing ratio test etc.
Details
- Portable, light weight and sturdy loading frame
- Can be used in the laboratory, Field and Mobile laboratory
- Useful to carry out CBR and Unconfined Tests (All accessories i.e. CBR Moulds, Unconfied moulds, tripod stands etc. will be at extra cost)
- Motorized and Electrically controlled system with Proving ring and Dial Gauge for load measurement purpose
- The load application is affected by advancement of a lead screw secured against rotation by a sliding key. The load is measured with a proving ring (at Extra cost).
- The unit is designed for maximum load of 5000 kg (50 Kn)
- Additional hand operated lever is fitted within the system in order to apply initial load on the test sample as and when necessary and to remove the sample under test when sudden electricity cut-off occurs.
- It consists of two speed screw jack mounted in a frame with identical top and base channel pieces so that the unit can be placed either way up and the device can be used for loading from above or from below whichever is convenient.
- Offers 3 different speed 1.05 mm/min, 1.25 mm/min and 2.50 mm/min
