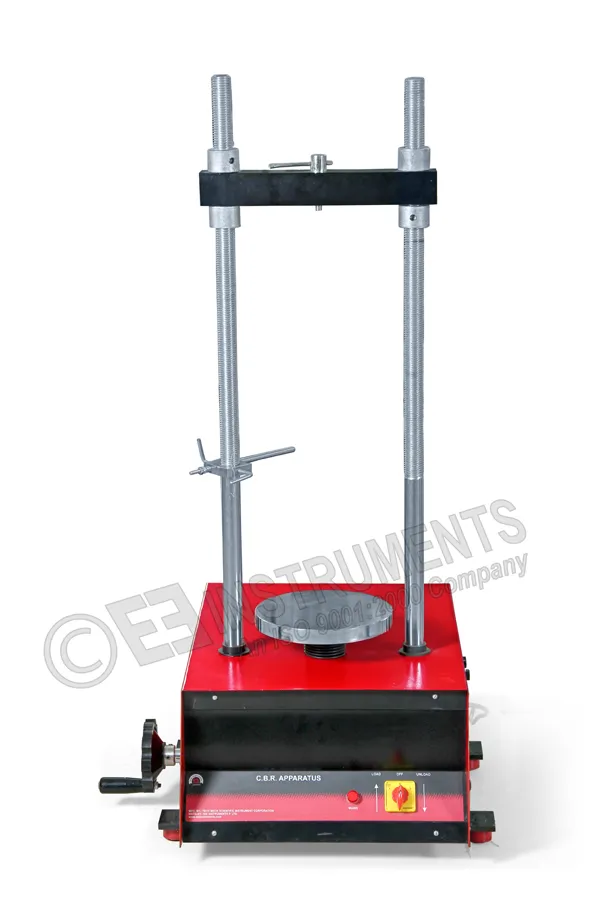

COMPACT CBR LOAD FRAME-ELECTRICAL-SINGLE SPEED-

COMPACT CBR LOAD FRAME-ELECTRICAL-SINGLE SPEED-

Model Number : TM-034C1

Single speed of 1.25 mm/min. Works on 230 Volts AC single-phase power. The load frame consists of a BONVARIO ITALY-made geared motor and bronze gears for long-lasting performance. Supplied without CBR mould, surcharge weight, brass perforated plate, tripod stand, spacer disc, penetration piston, proving ring, dial gauge, Proctor mould, and rammer, which are available at an extra cost. Further details are mentioned in the long description.

Single speed of 1.25/min. Working on 230 Volts AC single Phase. The Load frame consist of BONVARIO ITALY make Geared Motor and Bronze Gears for long lasting performance. Further details as mentioned in the long description

Complies with following testing standards:

IS: 2720 (Part XVI), IS: 9669

Applications:

EIE Motorized California Bearing Ratio Test Apparatus determines the load carrying capacity in the laboratory when in place density and water contents are such that the degree of saturation is 80 % or greater, when material is cohesionless and coarse grained.

Details:

  1. Load frame, motorized 5000 Kg (50 kn) capacity
  2. Designed with single rate of travel 1.25mm/min
  3. Benchtop design - Compact load frame
  4. Exterior body fabricated from Mild steel
  5. Powder coated paint in attractive shades
  6. Operates on 230 volts, single phase, AC Supply
  7. Weight : 98 Kg. Approx.
  8. Essential accessories to perform CBR Test is available at extra cost.
