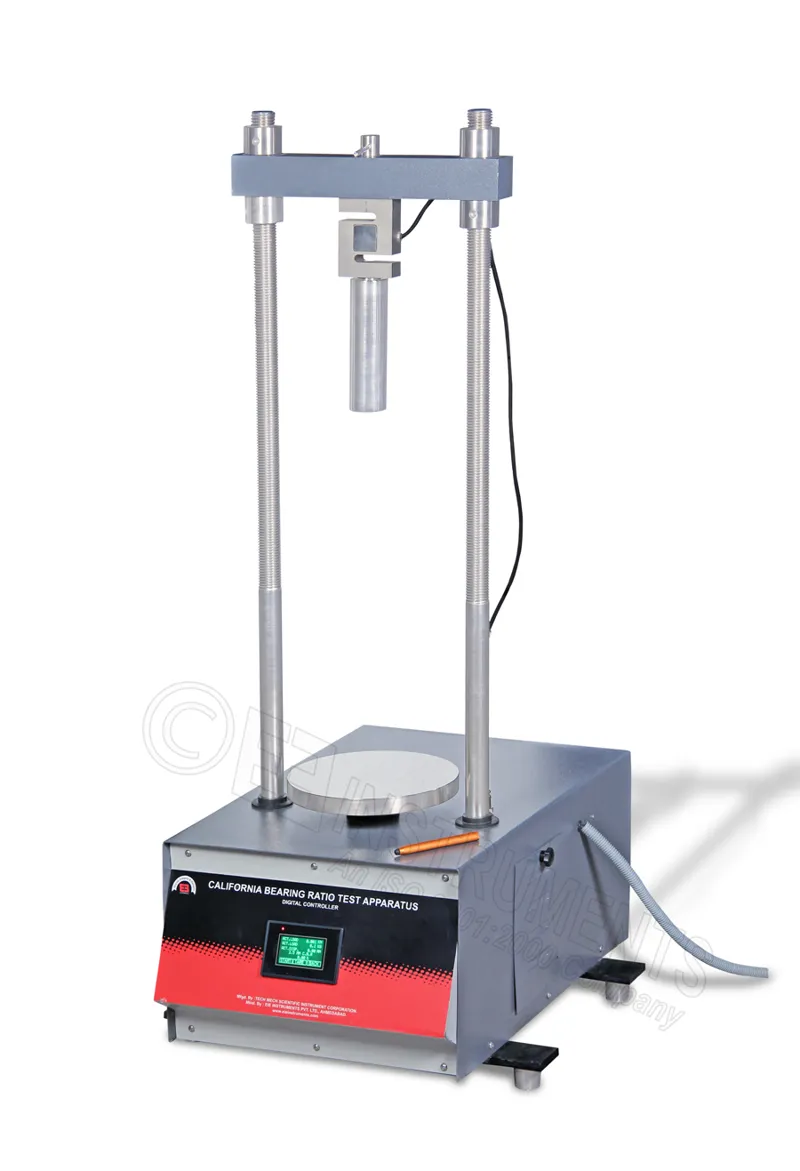

COMPACT CBR LOAD FRAME-TWO SPEED-DIGITAL-(BS 1377)-

Applicable Standards:

BS 1377:4

Salient features:

1. Touch screen monochrome display
2. Offers two speed - 1.0 mm/min & 1.27 mm/min
3. Load and displacement on the same screen
4. Sturdy and maintenance free structure
5. Exterior body is fabricated from mild steel material
6. Powder coated in attractive shades
7. Operates on 230 volts, 50 hz, single phase, ac supply
8. Capacity                         : 50 kN
9. Resolution                      : 0.001 kN
10. Displacement capacity   : 100 mm
11. Displacement resolution : 0.01 mm

Salient features in CBR test:

1. Speed 1.0 and 1.27 mm / min
2. Auto store of load and flow value at 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5 mm
3. Auto reverse after 12.5 mm or after pressing stop.
4. Auto calculation of the CBR value at 2.5 mm and 5.0 mm
5. Password protected calibration facility
6. Auto recalibration facility (in-built) for each test

Note:

1. 3 KVA servo stabilizer is must to operate the machine, which can be supplied at extra cost.
2. Accessories for CBR Test has to be purchased separately
