CONSTANT VOLUME MOULD - 38 X 126 MM

CONSTANT VOLUME MOULD - 38 X 126 MM

Model Number : EIE-ST-34.A12.38

Detailed Specification as follows.

  1. A constant volume split-mould is used as an auxiliary tool to prepare remoulded specimens to a fixed density/volume before testing, It helps Specimen Preparation for Strength Tests (UCS & Triaxial) as per IS 2720 (Part 10)/ IS 2720 (Part 11/12)/ ASTM D2166/ ASTM D2850 / D4767

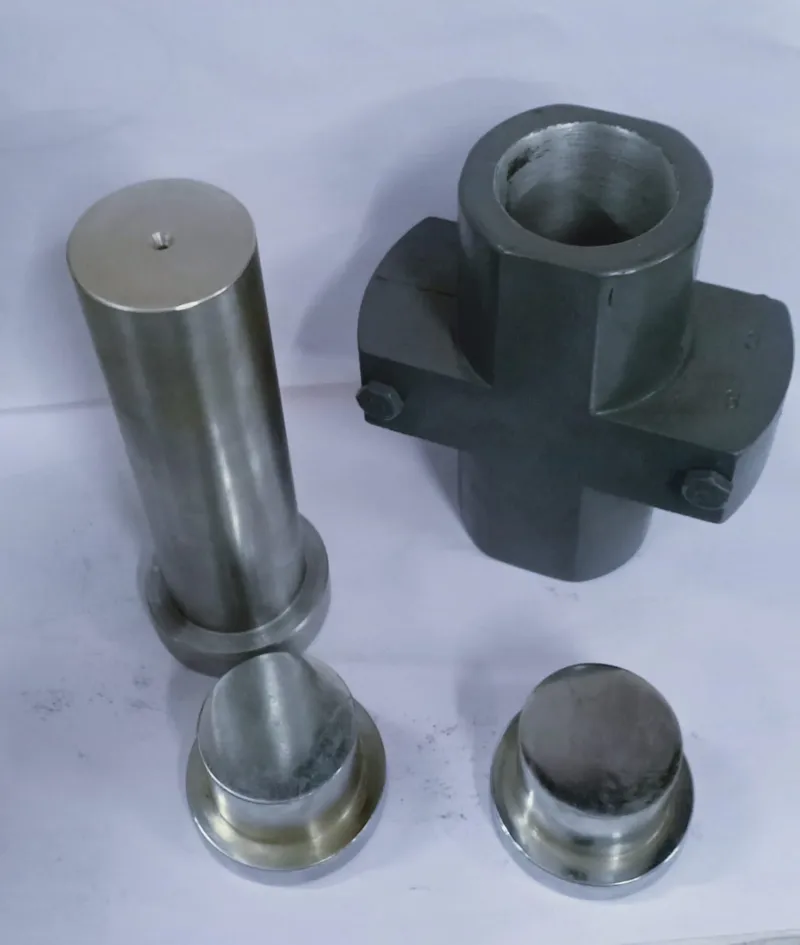

  2. Constant Volume Mould 38mm dia x 126 mm long : Mould to prepare 38mm dia x 76 mm long Specimens. Complete with two 38mm dia x 25mm long plugs, split collar and 126 mm long ejecting plunger.
