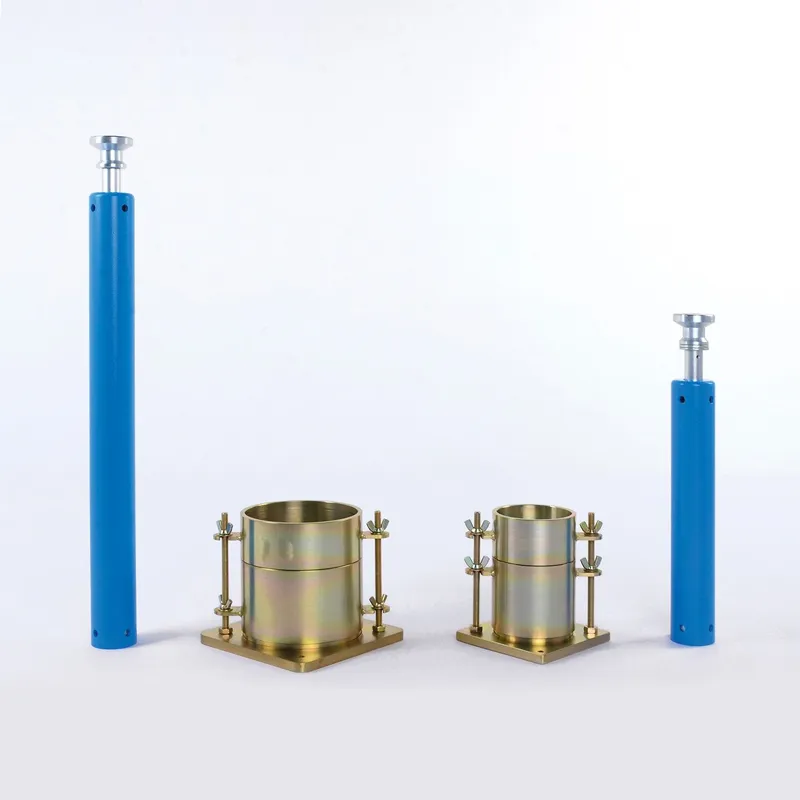

JODHPUR MINI COMPACTOR

Purpose:

Used for determining the relationship between the moisture content and density of compacted soil.

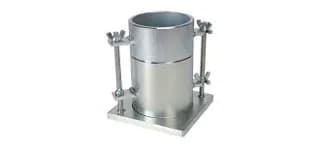

Construction Details of Mould:

1. The moulds include collar, mould body and base plate.
2. It will be made of Mild steel having capacity of 300 ML
3. The mould will be fitted with a detachable base plate and removable extension collar.
4. The internal surface of the mould will be smooth.
5. Complete with our own test certificate.
6. Internal diameter of mould : 79.8 mm
7. Weight of the rammer  : 2.5kg
8. Falling height of rammer : 250 mm
9. Compaction Mould 60 mm High 50 cm2 in Cross - Sectional Area 79.8 mm in Dia
10. Collar 30 mm high
11. Base plate 2.5 kg Dynamic Ramming Tool ( 2.5 kg DRT )
12. It consists of a 2.5 kg drop weight which falls freely through a height of 250 mm
13. Hammer Guide consists of a cylindrical metal tube of 50 mm Diameter and 435 mm Height
14. The combined height of the Foot , Rod and Knob of the Rammer is about 550 mm
15. Total mass is 2.6 kg with the Rammer resting on the base plate without a Specimen
