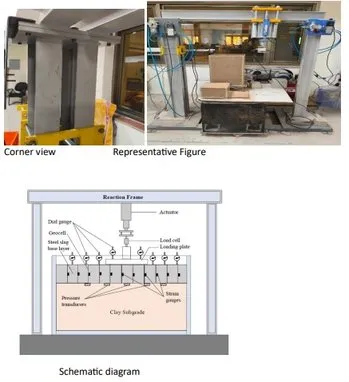

LABORATORY MODEL PLATE LOAD TEST APPARATUS

LABORATORY MODEL PLATE LOAD TEST APPARATUS

For educational use in Engineering Colleges. The students will easily and precisely understand the test conducted at site with convinience of Laboratory conditions.

Details:

  1. The Reaction Frame assembly made of rigid mild steel or cast iron frame, corrosion resistant
  2. Reaction frame capacity : 50KN
  3. Load cell capacity :50KN
  4. Vertical clearance :1500mm
  5. Horizontal Clearence:1000mm
  6. Bearing plate size dia 100,150 &200mm with 10mm thickness
  7. Bearing plate size dia 300mm with 15mm thickness
  8. LVDT : 25mm : 6nos
  9. The frame should have two I section of atleast 120*60mm and web thickness is at least 5mm and flange thickness is at least 6.3 mm
  10. Base tank Size: 1000mm x 1000mm x 600 mm
  11. The three faces of the tank will have steel material & corrosive resistant, and  externally braced to minimize lateral deformation of tank one face is of transparent acrylic side panel for observation
  12. 7"Touch Screen display with memory of at least 2000 readings
  13. Software and PC available at extra cost
