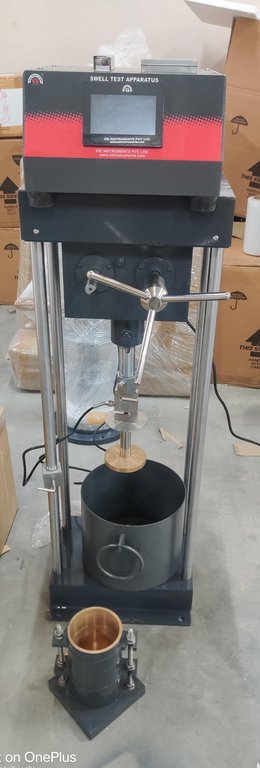

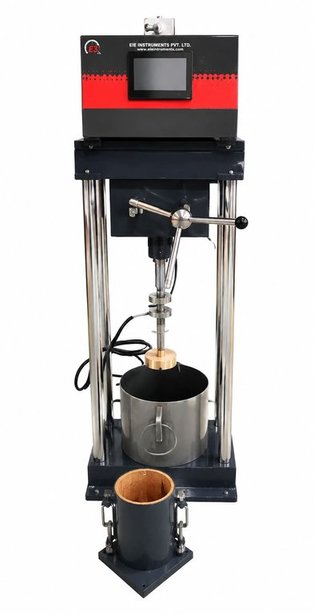

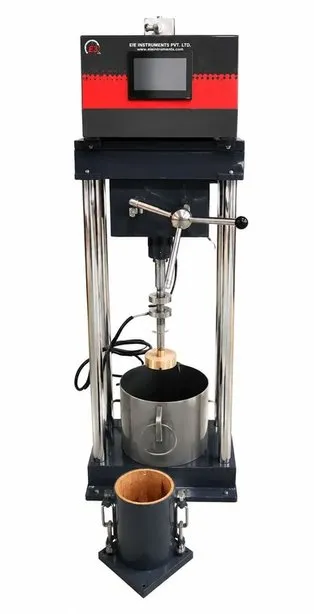

SWELL PRESSURE TEST APPARATUS - DIGITAL
Model Number : TM-164-D
As PR IS: 2720(Part 41)1977 / IS: 11550 (1985). With touch screen display and data storage with battery back up.
As PR IS: 2720(Part 41)1977 / IS: 11550 (1985) :
- One loading unit hand operated 500 kg capacity with two rates of travel
- One Gun metal mould, 100mm dia x 127.3 cm height X 1000 cc volume with base plate & collar
- One perforated swell plate 100mm dia X 16mm thick
- One spacer 100mm dia X 12.7mm thick
- Two porous stone of 100mm dia X 12.7mm thick
- One load transfer bar
- One steel ball & one soaking tank, 250mm dia x 210mm high
- One LVDT to measure the flow value - 25 mm
- Least count - 0.01 mm
- Load cell of 2.5 KN capacity
- Least count - 0.01 kn
| Frame | 500 kg capacity |
|---|---|
| Load cell | 250 kg |
| Load accuracy | 1% |
| Least count for load | 0.001 kg |
| LVDT | 25 mm |
| LVDT accuracy | 1% |
| Battery Backup | yes |
| Battery Backup | More than 2 hours |
| Display | 4" touch screen |
| Data Logger | yes, save data in the inbuilt memory |
| USB PORT | Yes. and data can be exported to pen drive |
| Display | Touch screen display shows load and displacement date on single screen |
| Data Download | Downloaded data in pen drive can be viewed in computer in excel formate |
| Operates on | 220 volts, single phase |
