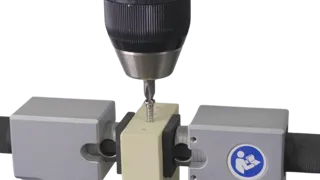

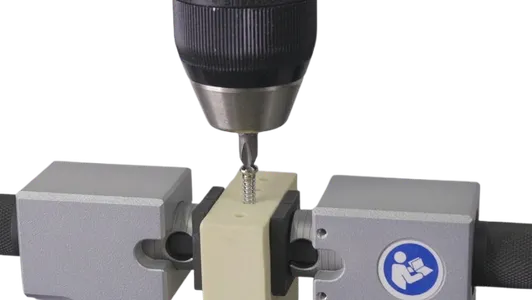

TORSION, TORQUE & SELF TAPPING TEST FIXTURES OF MEDICAL BONE SCREW

Compliance Standards:

ASTM F543

Applications:

1. To Determine the Torsional Properties of the bone screws by clamping the screw along the threads and twisting it until it breaks.
2. To Determine the Driving Torque of bone screws by driving the screw into a test block and measuring the maximum insertion and removal torque within the first four revolutions.
3. To determine the self tapping performance of medical screw

Features:

1. Torque transducer - 20 nm capacity
2. Breaking angle detection sensor
3. Centering machine vise to clamp Specimen (Specimen holder)
4. Collet Screw Clamp System for determining the torsional properties of metallic bone screws according to Annex A1, A2
5. Keyless Hand Chuck mounted on drive spindle for quickly installing various drive bits.
6. Linear actuator
