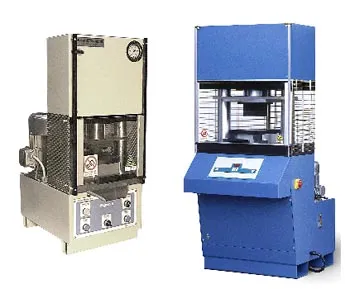

HYDRAULIC PRESS - 25 TON - AUTOMATIC
Model Number : AP-25 (AUTOMATIC)
This is electrically operated version of the manual press. The pumping is done by gearmotor drive. Simply press a button & it will start building pressure & will stop automatically at set pressure by means of a pressure switch. Evacuable die set available at extra cost
Features :
- The proven design of the hydraulic section of manual press is retained.
- The gear drive machanism along with the motar develop slow, steady pressure without jerks.
- Auto release after load.
- Digital pressure indicator
- Pressure can be set digitally for desired pressure cut off.
- Manual stop provided to override the auto stop required.
- Leek proof design.
- Easy to operate.
- Better pellet Quality.
- Evacuable die set available at extra cost
| Operation | Hydraulic Press with electrical drive. |
|---|---|
| Maximum Hydraulic Press | 25 Ton. |
| Piston Size | 90 mm Die |
| Piston Travel | 50 mm |
| Pressure Cut-Off | ON / OFF with Auto stop watch. |
| Dimensions | 400 mm X 280 mm X 480 mm. |
| Weight | 100 Kg. |
| Power | 230V, 50Hz |
