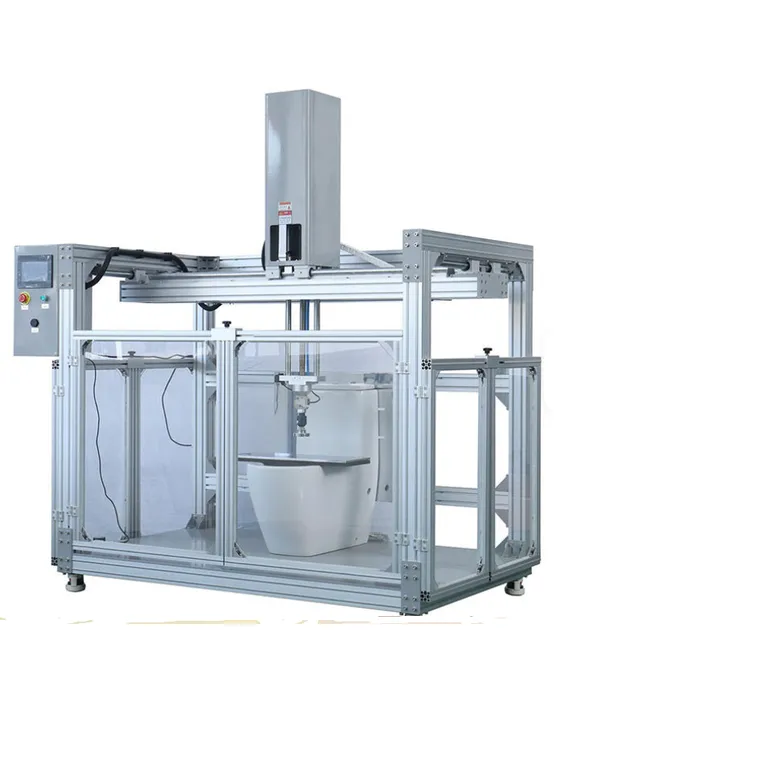

LOAD TESTING MACHINE - 1000 KGF - FOR WC / WASH BASIN

Product Overview:

The 1000 KGF Load Testing Machine for WC and Wash Basin is a precision-engineered testing system designed for evaluating the structural strength, load-bearing capacity, and durability of sanitary ware products including water closets (WC), wash basins, and related ceramic fixtures.

The machine is developed to perform controlled static load testing under accurately regulated conditions, enabling manufacturers and quality control laboratories to verify product performance, reliability, and compliance with applicable quality standards.

Designed with a robust mechanical structure and intelligent control system, the equipment accommodates both wall-mounted and floor-mounted sanitary ware, providing versatile testing capability for a broad range of products.

Key Features & Advantages:

Heavy-Duty Load Testing Capability

The system incorporates a high-precision 1000 kg load cell for accurate measurement and controlled application of test loads, ensuring dependable and repeatable results.

Wide Product Compatibility:

The machine is suitable for testing:

1. Wall-mounted WC
2. Floor-mounted WC
3. Wash basins
4. Similar sanitary fixtures

Its flexible loading arrangement enables testing of products with varying dimensions and mounting configurations.

Precision Motion & Speed Control:

A motorized loading mechanism with adjustable testing speed allows controlled application of load, reducing operator dependency and ensuring consistent testing conditions.

Testing Speed Range:

0.1 to 100 mm/min

This enables simulation of gradual loading conditions as required during strength and durability evaluations.

Extended Vertical Travel:

The loading frame offers substantial movement range for accommodating different product sizes.

Vertical Travel:

100 mm to 1600 mm

The large working envelope provides flexibility for testing both compact and large sanitary ware components.

Touch Screen Based Operation:

The machine is equipped with an advanced 7-inch touch screen controller providing:

1. User-friendly operation
2. Test parameter setting
3. Real-time monitoring
4. Simplified machine control

The intuitive interface enhances operational efficiency and minimizes training requirements.

Computer Connectivity:

The system supports computer connectivity through serial communication, enabling:

1. Data transfer
2. Test monitoring
3. Digital record keeping
4. Future integration with reporting or quality management systems

Protected Testing Chamber:

The testing area is enclosed with transparent acrylic guarding mounted on an aluminium profile and aluminium-plastic sealing structure.

This design provides:

1. Enhanced operator safety
2. Clear observation of testing process
3. Protection from accidental contact during loading

Why Choose This System:

The machine combines high load capacity, precise control, versatile fixture accommodation, and modern digital operation to deliver reliable and repeatable load testing for sanitary ware products.

Its rugged construction, safety enclosure, and intelligent controls make it an efficient solution for ensuring product strength, durability, and customer confidence.
