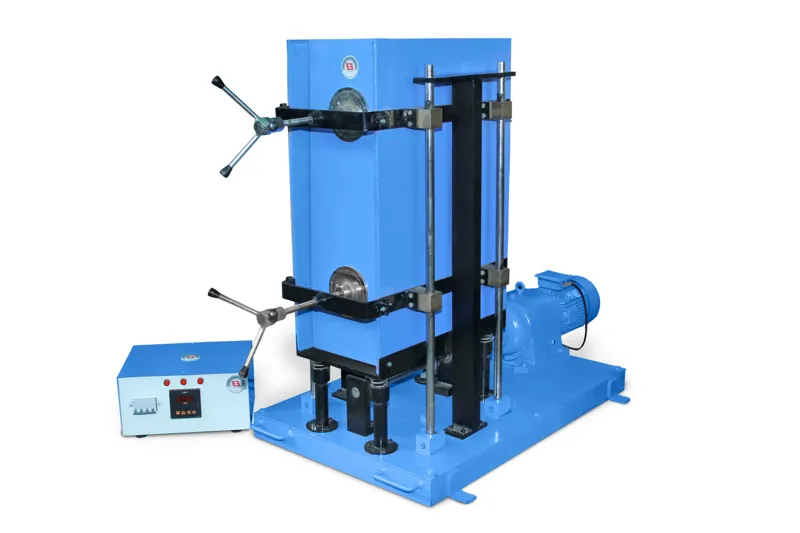

JOLTING TEST APPARATUS - AS PER IS 3144

JOLTING TEST APPARATUS - AS PER IS 3144

Model Number : EIE-TET-02

“EIE Jolting test” methods are given for evaluating the settlement of thermal insulation materials. Like, Rockwool, glass wool, cerawool etc....

Compliance with following international standards :

IS 3144-1992

Salient features :

  1. “EIE Jolting test” methods are given for evaluating the settlement of thermal insulation materials. Like, Rockwool, glasswool, cerawool etc....
  2. Jolting at low frequency and high amplitude.
  3. These have been used mainly for assessing the behavior of mineral wool and granular products for transport service.
  4. A wooden box with smooth interior surfaces, having internal dimensions of 900 mm height, 600 mm length and 300 mm
  5. width provided with removable lid shall be secured within a steel frame work fixed to a steel base plate.
  6. Provision is made for raising the frame work through a height of 25 mm and dropping vertically onto renewable steel blocks with frequency of 1 Hz

Technical specification :

  1. Volt = 415 Volt Ac (3 phase)
  2. Wooden box dimension = 600 X 300 X 900 mm
  3. Cam = for 25 mm lift (2 no)
  4. AC Motor = 3 H.P/ 2.24 KW geared motor (harmonic make)
  5. RPM = 60 RPM
  6. Timer = Wavetronix make (0-9999 minutes)
