CLEVELAND FLASH POINT APPARATUS
The Cleveland flash point apparatus is a top-of-the-line flash point instrument designed to deliver accurate and reliable results for determining the flash point of various substances. This advanced flash point machine is essential for laboratories, quality control departments, and research facilities, ensuring precise measurement and compliance with safety standards.
SMOKE POINT APPARATUS-(ASTM D1322)-
It is an indicator of the combustion qualities of Aviation Turbine Fuels and Kerosene. The fuel sample will be burned in the smoke point lamp and the maximum flame height obtainable without smoking is measured. As per ASTM D1322, IP 57, IS:1448 (P-31)
COPPER STRIP CORROSION TEST APP-DIGITAL-ASTM D130
The Copper Strip Tarnish Test assesses the relative degree of corrosivity of petroleum products, including aviation fuels, automotive gasoline, natural gasoline, solvents, kerosene, diesel fuel, distillate fuel oil, lubricating oil and other products. A polished copper strip is immersed in 30 mL of sample at elevated temperature. After the test period, the strip is examined for evidence of corrosion and a classification number from 1 4 is assigned based on a comparison with the ASTM Copper Strip Corrosion Standards. Supplied with One no. each S.S. BOMB (Copper Corrosion test vessel, stainless steel with O rings, screw type cap, for use up to 100 psi), Glass Test Tube, Copper strip (Pack of 3) Indian make laminated corrosion comparison chart and a Glass Thermometer.
RUST PREVENTION TEST APPARATUS-(ASTM D665, ASTM D5534, ASTM D3603)
A robust instrument designed for testing corrosion resistance of petroleum products, compliant with international standards: IP 124, ASTM D665, ASTM D3603, ASTM D5534, and NACE TM0172. It features precision temperature control, durable construction, and a comprehensive set of accessories.

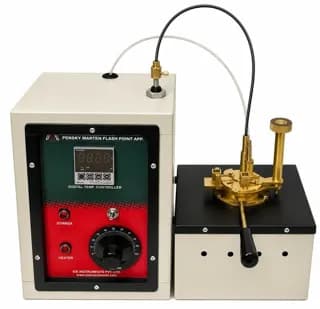

PENSKY MARTEN FLASH POINT APPARATUS-DIGITAL WITH MOTORISED STIRRER
These test methods cover the determination of the flash point of petroleum products in the temperature range from 40 to 360° C by a manual Pensky Martens Closed Cup Apparatus. This apparatus is made as per IS 1209, IS 1448: Part 21, IS 1448: Part 66, ASTM D93, ISO 2719, IP 34, JIS K2265-3. Used for finding out Flash Point above 70°C and below 300°C. Suitable for operation on 220 Volts 50 cycles AC Circuits Detail Specification as per following page. Oil test jet device supplied as standard accessory. Glass Thermometer and Open clip available at extra cost.
APPARATUS FOR ESTIMATION OF GUM CONTENT BY JET EVAPORATION-ASTM D381
As per ASTM D381, IP 131, IP 540. The complete assembly consist of Evaporation bath, Steam super heater, Glass beaker(5 Nos.), Flow meter, Tong for Beaker, Air Compressor and Glass Thermometer ASTM 3C.
DEMULSIBILITY TEST APPARATUS-(WATER SEPARABILITY TEST APPARATUS)-(ASTM D2711)
The demulsibility characteristics of lubricating oils as per ASTM D2711-22 involve evaluating the oil’s ability to separate from water. This is crucial for applications where water contamination is possible, as the presence of water can impact the oil's performance and protection of machine parts. Here's a summary of the test, along with apparatus specifications and critical dimensions:
