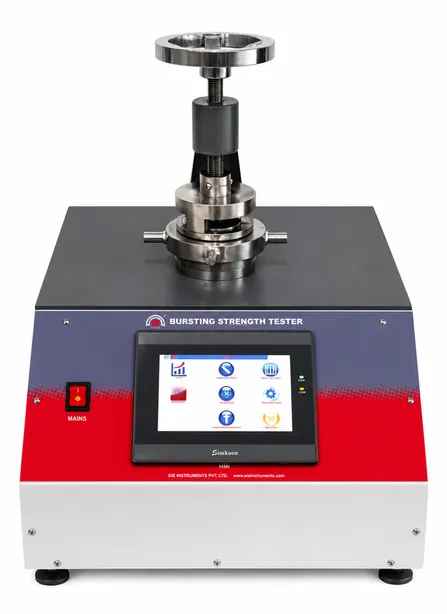

Fully Automatic Bursting Strength Tester

Complies with following International Standards:

ISO 2758, 2759, 2559, 3303, 3689, BS 3424, 3137, ASTM D3786, D774, D2738, T810, T403

Salient Features:

1. Proven and reliable performance
2. Scientifically calibrated through our in‑house calibration laboratory
3. Sturdy in construction
4. Low power consumption
5. Correctly matched motor gives constant pumping rate, eliminating manual error as per ASTM, BS and ISO Standard requirements.
6. Manual clamping of sample using hand wheel clamp.
7. PLC & Touch Screen HMI Controlled model, Logical Detection of Sample Failure
8. PLC Controller having Facility to Adjust Unit Selection viz. Kg/cm², Bar and PSI
9. Stores data up to last FIVE readings & Yields Average Value, Max. Value & Min. Value of the Tests.
10. Quick, Easy, Accurate & User Friendly Operation
11. All replaceable parts are readily available

Salient features of HMI & PLC Controller:

1. Eliminates the need for holding down the push button to bulid up the pressure
2. No need to inspect the sample visually
3. It automatically reverses the motor operation and thereby release the pressure on completion of the test cycle
4. Due to automatic pressure release mechanism, the diaphragm life is improved, which otherwise is not possible in manual pressure release mechanism.
5. Customer do not need to inspect and remember the breaking force all the time as it automatically gets registered within the PLC & HMI System
6. Soft touch sensitivity of Touch screen
7. Highly advanced and programmable PLC Controller to eliminate human error

Supplied complete with following accessories:

1. A spare rubber diaphragm
2. Standard aluminum foil of known value for cross verification purpose. - 1 No.
3. Fluid Bottle - 250 ml
4. Test report & Calibration certificate
