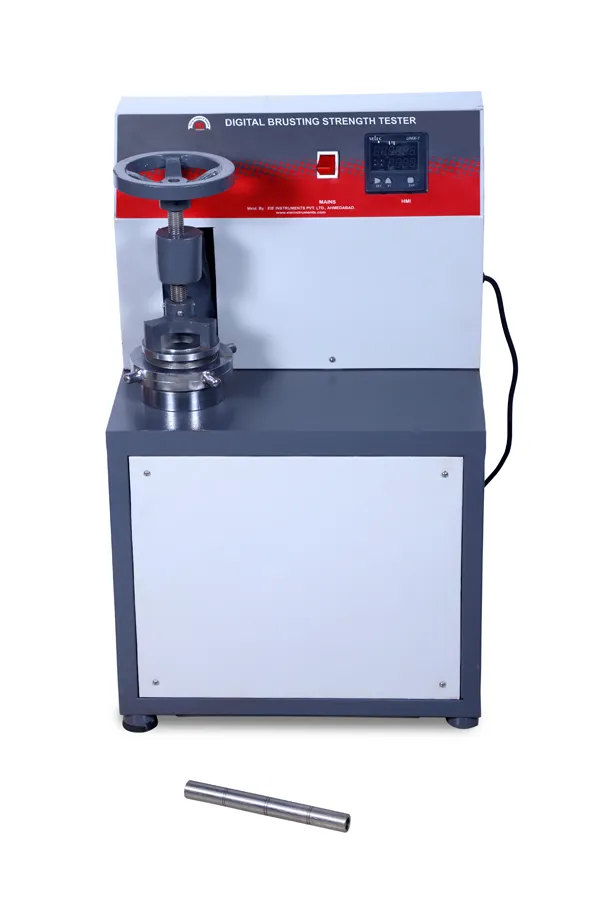

BURSTING STRENGTH TESTER-35 KG/CM2-DIGITAL-ECONOMY MODEL
Model Number : EIE-PT-101SH35DE
Digital Economy Model for Bursting Strength Test of Corrugated Box or Corrugated Paper
Complies with following International Standards:
ISO 2758, 2759, 2559, 3303, 3689, BS 3424, 3137, ASTM D3786, D774, D2738, T810, T403
Salient Features:
- Proven and reliable performance
- Scientifically calibrated through our in house calibration laboratory
- Sturdy in construction
- Low power consumption
- Correctly matched motor gives constant pumping rate, eliminating manual error as per ASTM, BS and ISO Standard requirements.
- Manual clamping of sample using hand wheel clamp.
- Single line digital display
- Quick, Easy, Accurate & User Friendly Operation
- All replaceable parts are readily available
Salient features of DIGITAL Controller:
- Eliminates the need for holding down the push button to bulid up the pressure
- No need to inspect the sample visually
- It automatically reverses the motor operation and thereby release the pressure on completion of the test cycle
- Due to automatic pressure release mechanism, the diaphragm life is improved, which otherwise is not possible in manual pressure release mechanism.
Supplied complete with following accessories:
- A spare rubber diaphragm
- Standard aluminum foil of known value for cross verification purpose. - 1 No.
- Fluid Bottle - 250 ml
- Test report & Calibration certificate
| Instrument Body | Fabricated from Mild Steel Material |
|---|---|
| Paint | Powder coating in attractive shades |
| Body size | 22” x 14” x 21” (L x W x H) |
| Test Fluid | Glycerin or EP 140 Gear Oil |
| Capacity of Test Fluid tank | 250 ml |
| Rate of Fluid Displacement | 170 ± 16 ml / Minute (For corrugated board and paper board) |
| Rate of Fluid Displacement | 96 ± 6 ml / Minute (For Paper material) |
| Opening of upper clamp | 31.50 mm (For corrugated board) / 30.50 mm (For paper) |
| Opening of Lower clamp | 31.50 mm (For corrugated board) / 33.10 mm (For paper) |
| Electric Motor | Reputed make induction motor to yield constant rate of pumping |
| Pressure transducer | Honeywell / Danfoss make |
| Display | LCD Display with back light indication |
| Maximum capacity | 35 Kg/cm2 |
| Pressure Resolution | 0.1 Kg/cm2 |
| Unit Selection | Kg/cm2 |
| Power Supply | 220 Volts, 50 Hz, Single Phase, AC Supply |
| Weight (Approx.) | 53.350 |
