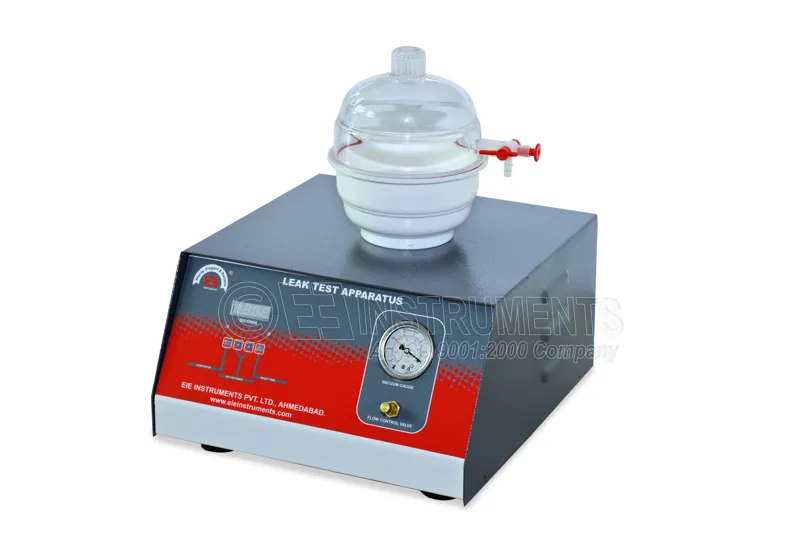

LEAK TEST APPARATUS-FOR PACKAGING TEST

LEAK TEST APPARATUS-FOR PACKAGING TEST

Model Number : EIE-PT-121DTP12

4 digit seven segment bright red LED display, Programmable Vacuum Hold Time up to 9999 Secs. Extremely useful for packing industry and ideal for Leak Testing of Strips, Blisters & Sachets. Instrument can be supplied with SS Cabinet at extra cost.

LEAK TEST DESICCATOR SIZE

Specifications :

  1. Vacuum Range: up to 22” of Hg
  2. Vacuum Gauge : Analog type (Digital model also available)
  3. Vacuum Setting: Vacuum can stabilize for a set value less than 400 mm Hg ± 10 mm Hg within 30 seconds.
  4. Desiccators: 12”
  5. Display of timer: 4‑Digit Seven Segment Bright Red LED
  6. Keyboard: Soft touch keys
  7. Hold Time: 15 ‑ 9999 SEcs
  8. Power: 230 V ±10% AC, 50 Hz, 10 W
  9. Weight: 13 Kg. (Approx.)


Accessories :

  1. Main Apparatus along with vacuum pump
  2. Polycarbonate desiccators along with connecting tubes
  3. Operation Manual
