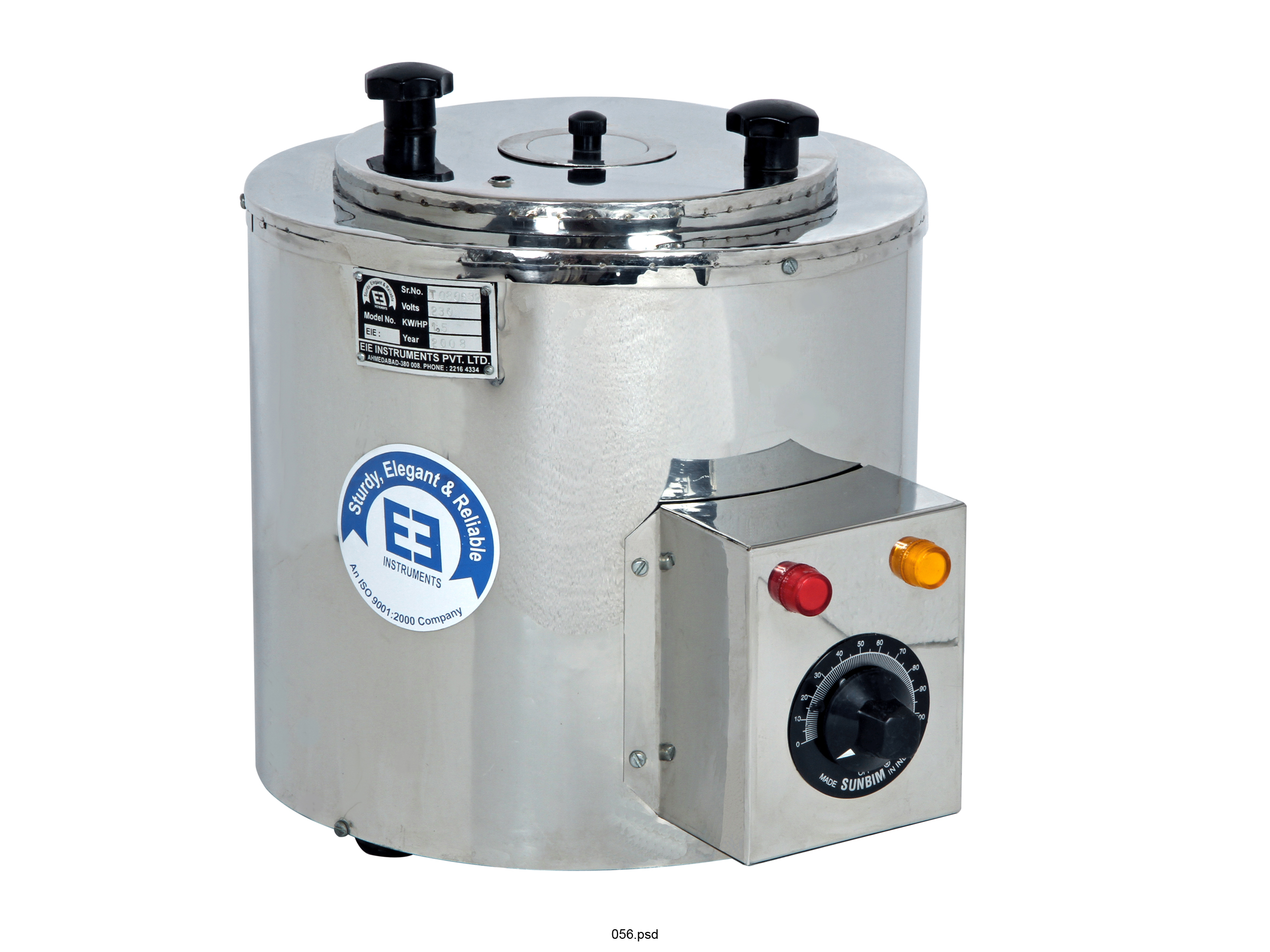

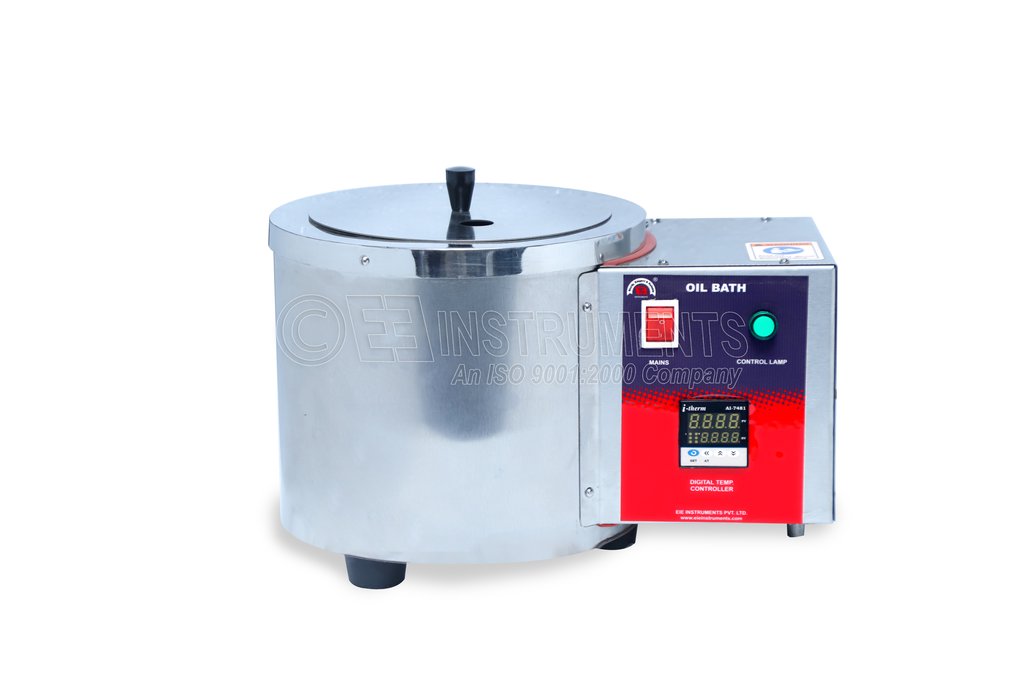

OIL BATH-ROUND-FOR PILOT PLANT-COMPLETE S.S.
Model Number : EIE-407DG1
Detail Specification as per following page.
Applications
- Laboratory high temperature heating applications
- Temperature sensor calibration
Salient Features
- Aesthetic outer appearance
- Unique design
- Compact and bench top design
- All interior and exterior parts are argon welded
- Easy to operate
- Complete Stainless Steel Design
- Supplied without high temperature oil (Provided at extra cost)
- Supplied complete with cord wire and power plug.
Optional accessories at extra cost
- Holder for temperature sensors/Thermometers @ Rs 1000.00
Note
Customer has to specify the exact application of Oil Bath at the time of order.
| Inner chamber dimensions | 275 x 275 mm (11" x 11") (Dia X Height) |
|---|---|
| Bath Volume | 16.32 Liters |
| Can accommodate | 5 Liters Capacity Flask |
| Construction | Double walled Construction |
| Inner chamber | Fabricated from polished stainless steel material S.S. - 304 grade |
| Exterior body | Fabricated from matt finished Stainless Steel material S.S. - 304 Grade |
| Insulation | Glass wool insulation between inner chamber and exterior body to prevent direct thermal heat loss |
| Temperature Range | From 5 °C above ambient to 300 °C |
| Heating | Heated by Immersion heaters installed within the inner chamber |
| Temperature controller | Microprocessor based Auto-Tune PID Digital Temperature controller cum indicator |
| Temperature Stability | ± 0.5 °C |
| Temperature Accuracy | ± 1 °C |
| Heater control | By control switch installed in the control panel |
| Heater Status | Control indication lamp |
| Perforated Platform | For placement of the flask or other glass wares |
| Power Consumption | 1.5 KW |
| Operation on | 230 Volts, 50 Hz, Single phase, AC Supply |
| Overall Dimensions | 400 X 480 X 390 (L X W X D) mm |
