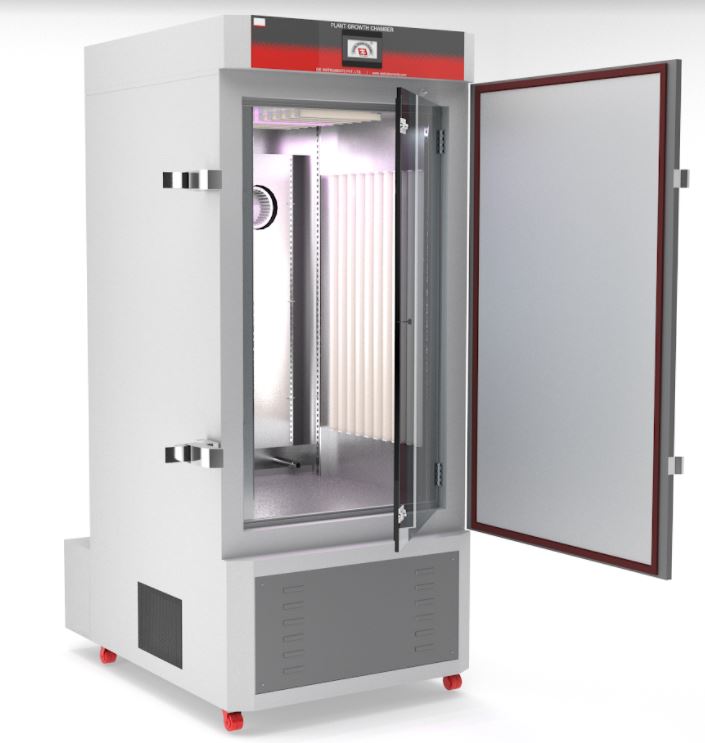

SEED GERMINATOR - REFRIGERATED - INNER S.S. - 90 X 60 X 60 CM - WITH HMI, PLC & ILLUMINATION CONTROL

SEED GERMINATOR - REFRIGERATED - INNER S.S. - 90 X 60 X 60 CM - WITH HMI, PLC & ILLUMINATION CONTROL

Model Number : EIE-118RPT216

Seed Germinators are used for germination & biological studies, which includes UV, Fluorescent lights coupled with 24 hours cyclic timer for lights on/off regulation. Detailed Specification as follows:

Construction Details :

  1. Double wall construction
  2. Interior chamber is fabricated from high grade stainless steel Material (S.S.304).
  3. Exterior body is fabricated from made Mild steel material ‑ which is duly powder coated in attractive shades
  4. Full size polycarbonate sheet inner door to inspect samples without affecting the chamber temperature.
  5. Properties of polycarbonate sheet door (Unbreakable, Un‑scratchable, High temperature resistant, Robust, Air tight and Transparent)
  6. Outer double walled metal door with sponge ‑ type silicon gasket for air‑tight sealing as to avoid leakage of chamber uniformity
  7. User friendly and tactfully designed chamber door and locking mechanism
  8. Chamber illumination is accomplished by Fluorescent light with door switch.
  9. Electrical wiring as per CE Compliances ‑ with individual numbering of each internal circuitry wire for ease of maintenance & Repairing
  10. Electric Motor of blower located at the back side of unit, which is protected with safety cover to avoid accident
  11. Standard motor of reputed companies ‑ such as CG, GODREJ or GE Make
  12. Hermetically sealed CFC Free Kirlosker/Emerson make refrigeration system with R‑134A refrigerant media
  13. Humidity system is accompanied by Non‑condensing type steam injection system with water level arrangement controlled through ball‑cock valve
  14. Illumination exposure with combination of LED TUBE LIGHTS for artificial day light and the cyclic illumination conditions are regulated by AUTOMATIC 0‑24 HOURS cyclic Timer.
  15. Chamber is fitted with required no. of 1 feet & 2 feet LED TUBE LIGHTS with adjustable dimmer & isolating drivers.
  16. Fitted with water Inlet, water Outlet & Over Flow Nozzle
  17. Cord wire duly tested and inspected with stress factor as per CE standard
  18. Aesthetic outer appearance and high quality
  19. Unit mounted on castor wheels for easy movement.

Insulation

70mm polyurethane insulation (PUF)/ fiberboard to ensure better insulation and less leakage of temperature or RH from inner body to the surroundings.

Air Circulation

Temperature is maintained by a quiet running blower circulation air throughout the chamber. Forced air circulated vertically down and re circulated throughout the chamber for uniform temperature and humidity.

Humidity

Humidity created by steam injection method. The boiler tank is fitted in the back side of the chamber for better servicing, Electromagnetic switch for controlling the wet heater from burning off if water level is not adequate. Float valve provided to control water level in the boiler tank.

Heating system

Long lasting SS tubular heaters used as heating element. The stainless steel fins provided to ensure better heat transfer.

Refrigeration System

Hermetically sealed compressor CFC free compressor (134 A gas) coupled with evaporation coil and condenser. Kirlosker/Emerson make refrigeration system.

Trays for sample

  1.  Removable perforated trays are part of the standard supply.
  2. Strong enough to with‑stand heavy load of test specimens
  3. Such trays will also facilitate better air circulation.
  4. The distance between trays will be 15‑20 centimeters.

Safety Features

  1.  High temperature safety cut off
  2. Low water level boiler cut off
  3.  Electrical overload cut off
  4. Time delay for compressor switch ON
  5. Electrical circuit breaker

Pre installation mandatory requirement : (Guarantee void in case of non compliance)

  1. Distilled water OR DM water continuous supply with tap for boiler input of 3/8" BSP at 3 feet height.
  2. Room temperature around machine preferably at 25 °C. with air conditioning or a well ventilated room with exhaust fan.
  3. However surrounding temperature should not exceed 30 °C.
  4. Stabilized Input Voltage of 230 Volt, 50 Hz, 20 Amps, AC Supply. Use of Servo Controlled Stabilizer is recommended.
  5. Water drain line with 3/8" nozzle to be provided at floor level.

Optional Accessories At Extra Cost

21‑CFR Compliance software with PC Connectivity to log, modify and store the generated data, To generate the Audit trail report and to plot the real‑time graphs of various parameters @ Rs 30000
