Compliance standards:
ASTM D256
Applications:

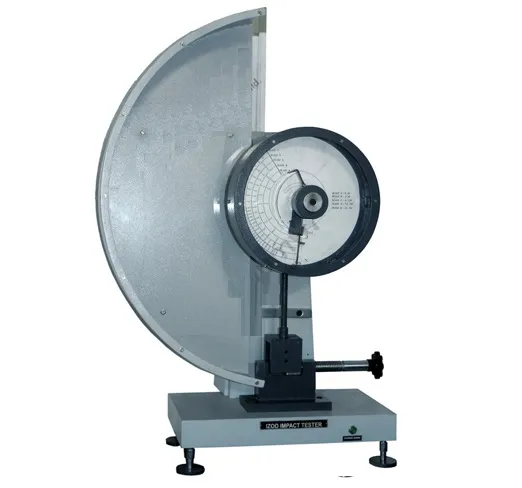

Izod Impact Tester covers the determination of the resistance to breakage by flexural shock of plastics and electrical insulating materials.
Test method:
The specimen is held as a vertical cantilever beam and is broken by a single swing of the pendulum with the line of initial contact, at a fixed distance from the specimen clamp and from the centerline of the notch and on the same face as the notch. The measurement is in kg.
| Weight | 120 kgs |
|---|---|
| Angle of fall of pendulum | 1.3725 kg |
| Minimum graduation | 0.005 kg |
| Striking Velocity of Pendulum | 2.3402 m/s |
| Maximum permissible loss by friction and winding | 0.5% |
| Hammer and vice | As per ASTM D256 |
