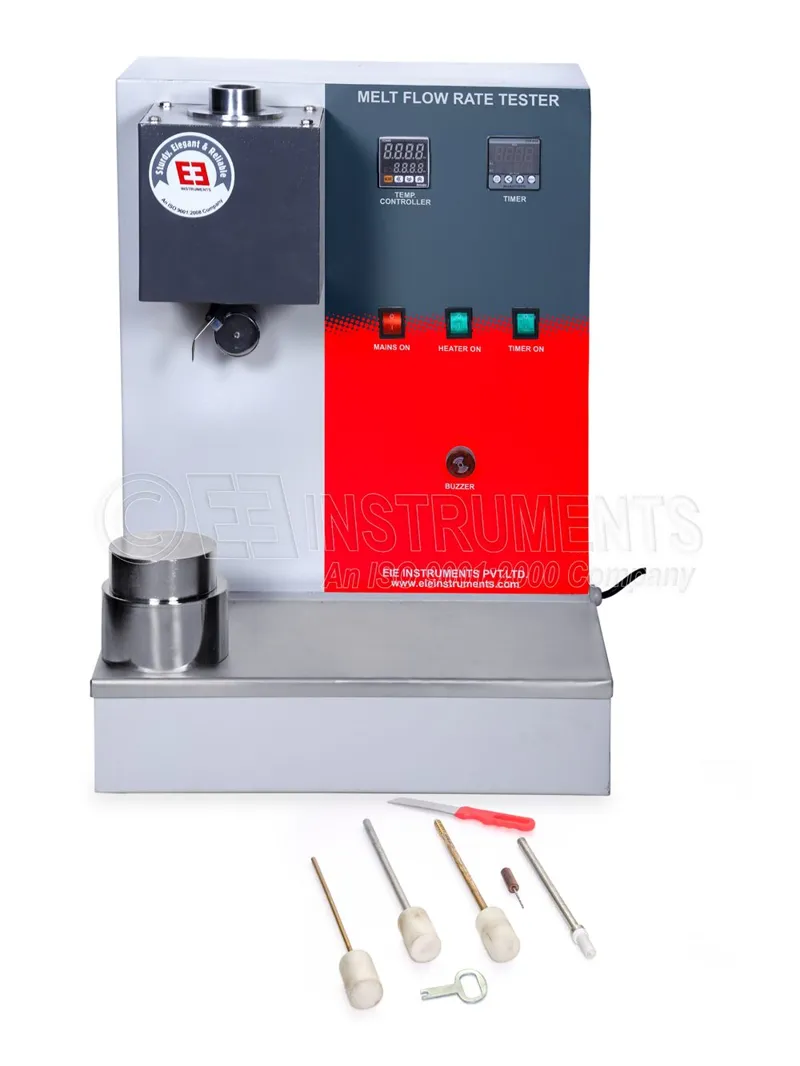

MELT FLOW INDEX TESTER - MOTORIZED AUTO SAMPLE CUTTING - MANUAL SAMPLE WEIGHING - (ASTM D1238)

Model Number : GT-109ACMW

Compliance with following International Standards - ASTM D1238. Detailed specification as follows:

MFI OPERATION

AUTOMATIC SAMPLE CUTTING
FULLY AUTOMATIC OPERATION
MANUAL SAMPLE CUTTING

Compliance with following International Standards:

ASTM D1238, IS 2530 - Method A

Applications:

Melt Flow Indexer is used to measure the flow rate of different polymers. The reported Melt Index values helps to distinguish between the different Grades of Polymers. This is due to the fact that plastic materials are seldom manufactured without incorporating additives, which affect the processing characteristics of material like stability and flow ability.

The Melt Flow Index Test measures the rate of extrusion of a Thermoplastic material through orifice of Specific Length and Diameter under prescribed conditions of temperature and pressure.

Suitable to conduct

Method A & C

Note

Auto sample cutting
Manual sample weighing
Manual calculation of results

Temperature controller	Microprocessor based Digital Temperature Controller
Temperature Range	0 to 400 ⁰C
Temperature Resolution	up to 0.1 ⁰ C
Temperature Accuracy	± 0.1 % F.S.D.
Timer	Microprocessor based Digital Timer
Timer Range	0 ‑ 999.9 Seconds and having Preset facility with buzzer output
Exterior body	Fabricated from Mild Steel Material
Exterior Body Paint	Powder Coated in attractive shades
Dead weight	Supplied complete with 2.16 kg & 5 kg chrome plated weights
Sample cutting	Automatic Motorized sample cutting
Weight Lifting	Manual
Sample weighing	Manually with external electronic balance
Power Supply	230 Volt , 50 Hz, Single Phase, AC Supply
Accessories Supplied	Orifice, Piston, Material charger, Barrel Cleaner, Orifice cleaner, Sample cutte
Amperes	4 Amps
Dimension (W X D X H) in mm	17" x 17" x 25" (W x D x H)
Weight	45 Kgs
Model	Table Top Model
Motor	Stepper motor with programmable controller for auto cutting function
