PLASTIC LIMIT APPARATUS - IS-2720 (PART-VII)
Model Number : EIE-ST-13
Detailed specification as follows. Packed in wooden box.
Compliance Standards:
IS-2720 (PART-VII), EN ISO 17892 (PART 12), BS 1377,ASTM D4318
Applications
The plastic limit is defined as the lowest moisture content of a soil that will permit a sample to be rolled into threads of 3 mm diameter without the threads breaking. The apparatus required is simple yet effective.

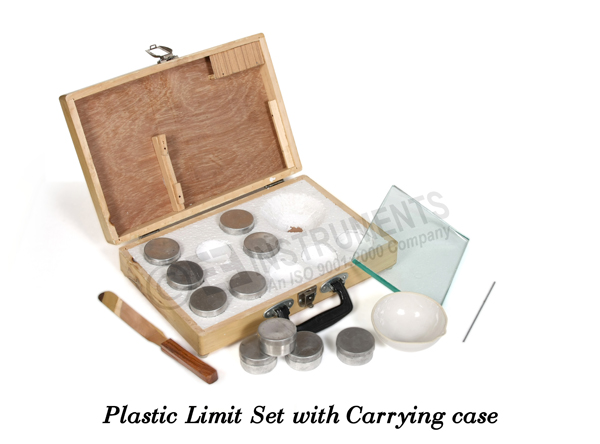

The Complete set consist of one each:
- Glass plate 20cm X 15cm having ground ends and one side frosted - 01 No
- Brass or stainless steel rod 3mm dia X 150mm long - 02 Nos.
- Flexible spatula - 01 No
- Moisture containers - 06 Nos.
- Porcelain basin - 100mm dia - 01 No
| Overall Dimensions in Inches (L x W x H) | 15 x 10 x 3 |
|---|---|
| Weight (Approx.) | 1.950 Kg |
