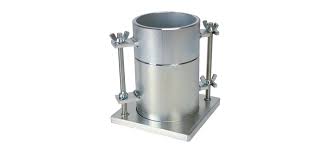

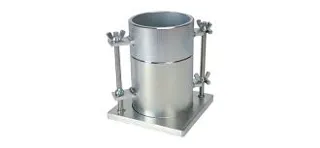

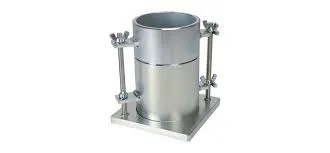

MODIFIED PROCTOR COMPACTION MOULD 150MM DIA - IS 10074

MODIFIED PROCTOR COMPACTION MOULD 150MM DIA - IS 10074

Model Number : EIE-ST-24ISMm

As per IS 2720 (Part VIII) and IS:10074-1982. Complete with base plate and collar

Compliance Standards

IS 2720 (Part VIII) 1980, IS 10074


Details

  1. Cylindrical mould of Mild steel having volume of 2250 cc with an internal diameter of 150 ± 0.1mm and an internal effective height of 127.3cm ± 0.1mm.
  2. Fitted with a detachable base plate and removable extension collar with 60mm height.
  3. The internal surface of the mould will be smooth.
  4. Proctor Rammer avaiable at extra cost.
  5. Proctor Mould also available in Gun metal (Optional)
  6. Also available as per ASTM D1557 / BS 1377-4
