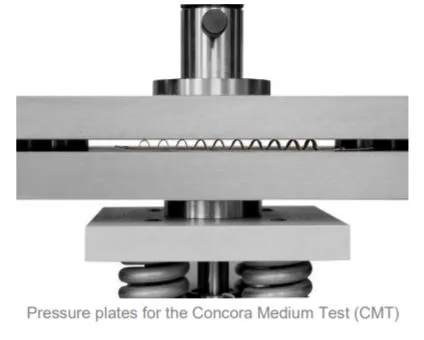

CMT TEST FIXTURE - FOR CRUSH RESISTANCE TESTER
Model Number : EIE-PT-110DP.A7
Applications
To determine the crush resistance of concora flutes.
Details of working
The 152 x 12.7 mm sample prepared with the concora flutter is glued with the aid of the third hand and placed between the platens of the crush tester. In the CMT test, the f lutes are exposed to compression until they buckle. The force measured indicates up to which point the fibers recover or when they can no longer return to their original shape and how much force is required to finally break them
