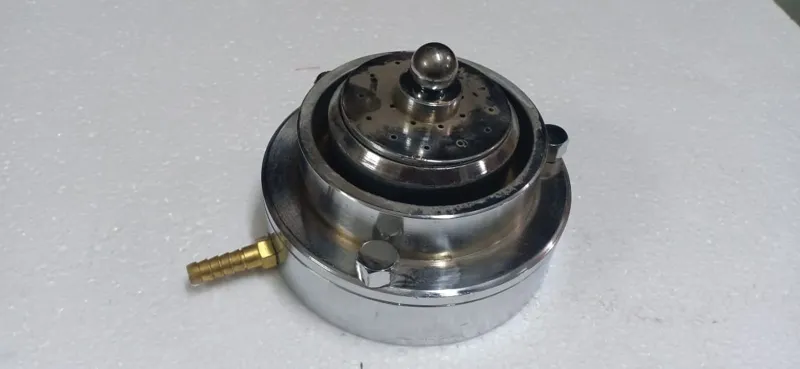

CONSOLIDATION CELL ASSEMBLY - 60MM DIA.

Consolidation cell assembly, fixed ring type for testing 60 mm dia x 20 mm thick specimens comprising:

1. Fixed ring for specimens 60 mm dia x 20 mm thick with a guide ring.
2. Top porous stone for 60 mm dia specimen.
3. Bottom porous stone for 60 mm dia specimen.
4. Pressure pad, perforated.
5. Channelled base with water inlet.
6. Gasket.
7. Flanged water jacket.
