DETERMINATION OF FROST RESISTANCE-(BIS 13630-10, EN ISO 10545-12)

DETERMINATION OF FROST RESISTANCE-(BIS 13630-10, EN ISO 10545-12)

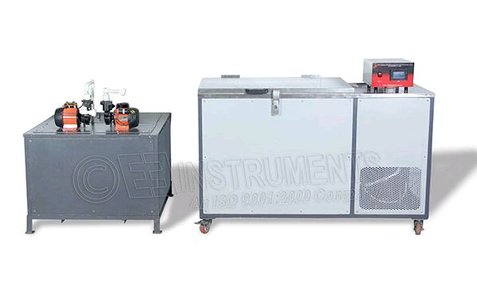

Model Number : TC-113FA

Compliance standards: EN ISO 10545-12, ASTM C1026, IS 13630 (Part-10), Suitable for tile size up 500 X 500 mm. Further details as per the detailed description.

Compliance standards:

EN ISO 10545-12, ASTM C1026, IS 13630 (Part-10) (amended in 2019)

Salient features:

  1. Suitable for tile size up 500 X 500 mm
  2. Designed to match the IS : 13630 (part 10) and EN ISO 10545-12
  3. Capable to conduct automated freeze thaw cycle automatically
  4. Capable to reduce temperature from 5°C to (- 5°C) within the permissible limit of 0.5 °C and capable to maintain the temperature @ (-5 °C) for 15 mins automatically. After that it has facility to reach (+5 °C) rapidly. This is the completion of one freeze-thaw cycle.
  5. Capable to conduct the pre decided freeze-thaw cycles (100 cycle as per BIS 13630)
  6. Fully automatic touch screen PLC - HMI based programming
  7. CFC free refrigeration system
  8. Heavy duty Castor wheels for easy movement
  9. Fin & Tube type air-cooled condenser
  10. Double Gasket system for leak proof Design
  11. Heavy duty hinges with toggle type
  12. Auto removal of water as soon as temperature reaches to 5 °C, while operating in freezing cycle.
  13. Auto insertion of water as soon as temperature reaches to 5 °C, while operating in thawing cycle.
  14. Capable to place 10 samples vertically
  15. The samples will be covered with water 50 mm above the top height of the sample
