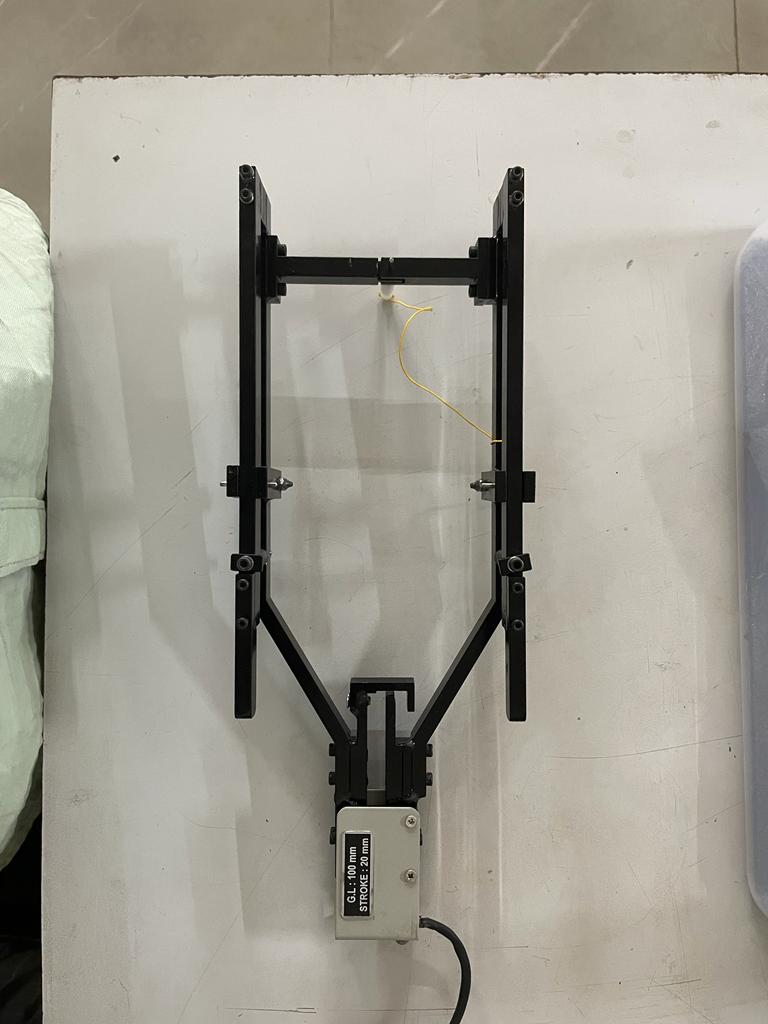

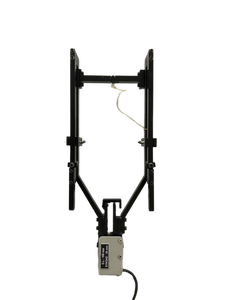

CLIP ON ELECTRONIC EXTENSOMETER - 100 MM GAUGE LENGTH, 20 MM STROKE - STRAIN GAUGE BASED
Detailed Specification please refer after commercial part.
Details
To determine the precise gauge length extension for Polyester Fiber / yarn / Fabric / Geotextile / Geogrid Material
| Gauge Length (mm) | 100 mm |
|---|---|
| Extension | 20 mm |
| Input Voltage | 5 Volts DC Preferred |
| Output Voltage Range | 3-3.5 mV / V |
| Sensor Details | Full bridge strain gauge - 350 Ohms |
| Resolution and Accuracy | As per IS 12872 / ISO 9513 Class 1 |
| Force | 50 mg |
