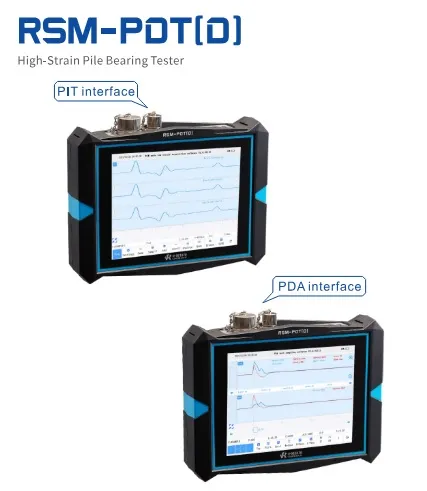

PILE DRIVING ANALYZER - HIGH STRAIN - RSM-PDT(D)

Application:

1. Standard Test Method for High Strain Dynamic Testing of Deep Foundations ASTM D4945-17
2. Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations ASTM D5882-16

Features:

1. Pile Driving Monitoring : With fast signal acquisition pace, the 60 hammers/min signal acquisition can be completed and the pile driving monitoring testing can be carried out in real time.
2. Strain transducer installation monitoring, automatic balance adjustment of strain bridge : Real-time monitoring of strain sensor deformation status;  Reduce the impacts of initial deformation of strain transducer on signal acquisition and eliminate the signal zero drift.
3. Intuitive Result : Analysis results by Case method, F-ZV curves and upper and lower traveling wave curves are displayed in the field.
4. Instantaneous floating point amplification technology : Compatible with the distortion less acquisition of strong and weak signals. The three-dimensional correction function for shallow defect is owned and the defect can be located accurately.
5. Large Capacity Ultra-thin Battery : 9mm ultra-thin large-capacity battery, battery life ≥10h and removable. Can be equipped with a backup battery.
6. Industrial-grade : Newly upgraded industrial-grade capacitive touch screen, smooth and precise operation, adapt to strong light environment.

Standard supply

1. High strain pile bearing tester - RSM-PDT (D)
2. High strain test cable : 20 meter
3. Strain transducer - 3 pcs - 3M
4. Piezoelectric accelerometer - 2 Pcs-5M
5. Cable bag
6. Power Adaptor - 8.4V - 5A - 2 Pcs
7. Tool kit : U disk, tape measure, wrench
8. Expansion Bolt
9. Instrument Container

Optional for PDA

1. Superdog and RSM-CAPWAP software

Optional for PIT

1. Accelerometer with Cable 5 m
2. Hammer

Note:

EIE Instruments Pvt Ltd in Partnership with Wuhan Sinorock Technology Co. Ltd

1. EIE Instruments Pvt Ltd, a leader in civil engineering testing instruments, has partnered with Wuhan Sinorock Technology Co. Ltd, a global expert in foundation pile testing.
2. This collaboration brings advanced solutions for Pile Integrity Testing, Dynamic Analysis, Cross-Hole Sonic Logging, Static Load Testing, and Drilling Monitoring, combining EIE’s trusted manufacturing and service with Sinorock’s innovative technology.
3. The partnership provides Indian infrastructure and geotechnical industries with reliable, efficient, and standards-compliant pile testing solutions, supporting engineers and contractors with accurate, safe, and streamlined foundation assessment.
