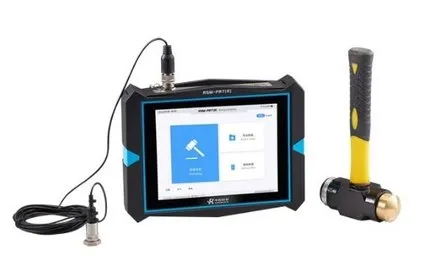

PILE INTEGRITY TESTER - LOW STRAIN - SINGLE CHANNEL - RSM-PRT(R)

PILE INTEGRITY TESTER - LOW STRAIN - SINGLE CHANNEL - RSM-PRT(R)

Model Number : RSM-PRT(R)

The RSM-PRT(R) pile low-strain detection instrument is a new low-strain detection device independently developed and designed. It features an exquisite design, user-friendly interface, simple operation, and is suitable for various conventional low-strain testing standards. It exhibits strong adaptability to the testing environment, high equipment stability, and provides reliable and genuine data. Detailed Specification as follows:

Application:

  1. Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations ASTM D5882-16
  2. Pile low-strain Integrity test using the reflection wave method.


Compliance with specifications:

  1. Technical Code for Inspection of Building Foundation Piles (JGJ 106-2014)
  2. Technical Code for Building Foundation Testing (JGJ 340-2015)
  3. Low Strain Impact Integrity Testing of Deep Foundations (ASTMD5882)


Technical Features:

  1. Innovative instant floating-point amplification technology ensures distortion-free acquisition of both strong and weak signals.
  2. Equipped with a three-dimensional correction function for shallow defects, ensuring accurate defect localization.
  3. On-site analysis functions include filtering, exponential amplification, and defect localization.
  4. Features a 9mm ultra-thin, high-capacity battery that is removable, ensuring uninterrupted fieldwork.
  5. The shell of host is made of engineering plastic ABS+PC and heat-resistant flame-retardant materials, providing high impact resistance.
  6. Designed with IP65 dust and water resistance, making it immune to harsh environments.
  7. Built-in 4G module enables one-click online software upgrades.
  8. Industrial-grade capacitive touchscreen with a soft touch, smooth and precise operation, suitable for bright environments.
  9. Newly upgraded software with a more user-friendly and convenient control interface.


Standard supply :

  1. Host - RSM-PRT(R) - 1 No.
  2. Piezo electric accelerometer and connecting cable - LC0104Cpdi 4Core of 5m
  3. Low strain hand hammer - 1.5kg(including 1 copperhead, 2rubberheads) - 1 No.
  4. Power adaptor - 8.4V5A - 1 No.
  5. toolkit - Contains U disk, tape measure, battery mounted wrench, SIM tray set - 1 set
  6. Instrument container - 1 No.
  7. Instrument shoulder strap - 1 No.


Note:

EIE Instruments Pvt Ltd in Partnership with Wuhan Sinorock Technology Co. Ltd

  1. EIE Instruments Pvt Ltd, a leader in civil engineering testing instruments, has partnered with Wuhan Sinorock Technology Co. Ltd, a global expert in foundation pile testing.
  2. This collaboration brings advanced solutions for Pile Integrity Testing, Dynamic Analysis, Cross-Hole Sonic Logging, Static Load Testing, and Drilling Monitoring, combining EIE’s trusted manufacturing and service with Sinorock’s innovative technology.
  3. The partnership provides Indian infrastructure and geotechnical industries with reliable, efficient, and standards-compliant pile testing solutions, supporting engineers and contractors with accurate, safe, and streamlined foundation assessment.
