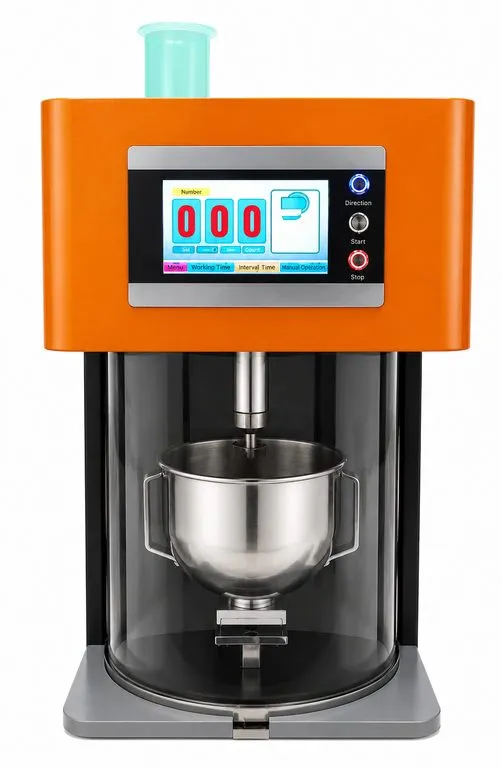

FULLY AUTOMATIC DIGITAL MORTAR MIXER - EN 196-1, EN 196-3 - 4.75 LTR
Model Number : TM-121FA
The Fully Automatic Digital Mortar Mixer is designed for the preparation of standard cement mortar prisms in accordance with EN 196-1, EN 196-3, IS 4031, and ASTM C451. It features a 5-liter nominal capacity, microprocessor-based control, and an integrated sand dispenser for accurate and repeatable mixing.
Compliance with following International Standards:
EN 196‑1 & EN 196‑3, IS 4031, ASTM C451
Application:
Preparation of standard prisms with Automatic/Manual mixing procedure in accordance with EN 196‑1 & EN 196‑3.
Special Features:
- 5 liter nominal capacity
- Microprocessor control
- Sand Dispenser
- Mixer operates on two different speeds.
- Mixer blade has Rotational low speed of (140 ± 5 rpm) and Rotational high speed of (285 ± 10 rpm).
- It also has a planetary movement of (62 ± 5 rpm) in low range and planetary movement of (125 ± 10 rpm) in high range.
Details and working principle :

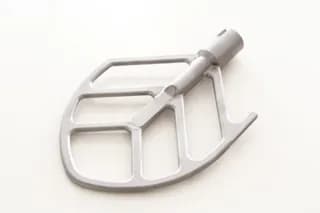

The mixer is designed to mix mortars and cement pastes primarily to the requirements of EN 196. The mixing paddle has a planetary motion and is driven by a motor with a microprocessor based speed and program controller. When the mixer is used in the manual mode, the two mixing speeds can be changed by means of a button, without switching off the motor.
Also, machine has been designed to prepare cement mortar for strength determination as specified in IS: 4031. It can also be used in mixing lime with pozzolanic materials for determination of lime reactivity (as per IS: 1727) and for uniform mixing of soils with additives such as lime, cement.
| Overall Dimensions in Inches (L x W x H) | 17x16x32 |
|---|---|
| Weight (kg) | 90 |
