CHLORIDE METER FOR FRESH CONCRETE - DY-2501A

CHLORIDE METER FOR FRESH CONCRETE - DY-2501A

Model Number : DY-2501A

The chloride meter has the best performance to quickly and accurately measure the chloride ion concentration contained in raw concrete/aggregate. All equipment required for measurement, such as standard calibration solution, cleaning solution, and sensor, are stored in the case, making it convenient to carry and use. From calibration to measurement and output, it is conducted in an interactive manner, making it easy for anyone to operate. In addition, it uses a large 128×64 LCD that cannot be found in existing chloride ion meters, so that the measurement results can be checked in real time during calibration or measurement, and the self-diagnosis function in the CPU checks the device status in real time and is configured to notify the user immediately if an abnormality occurs.

  1. Measurement target : Fresh concrete/ready-mixed concrete (Cl-), aggregate (NaCl), aqueous solution (Cl-/NaCl)
  2. Measurement method: Ion-selective sequencing (ISE)
  3. Measurement items : Chloride ion (Cl-), sodium chloride (NaCl), total chloride ion amount (kg/m3), temperature
  4. Measurement time : Within about 2 minutes
  5. Measurement range : 0.001% ~ 1.500% Cl-
  6. Resolution : 0.0001 (Chloride)
  7. Temperature compensation : Automatic (ATC)
  8. Screen output : 128 x 64 graphic LCD
  9. Built in Thermal Printer
  10. Self diagnostic functions
  11. Internal memory to store 100 readings
  12. Power : Rechargeable Battery Ni-MH 12V, 2300mAh | AC 110/220V
  13. size : 350(W) x 280(D) x 140(H) mm
  14. weight : About 5 kg
  15. CE Marked

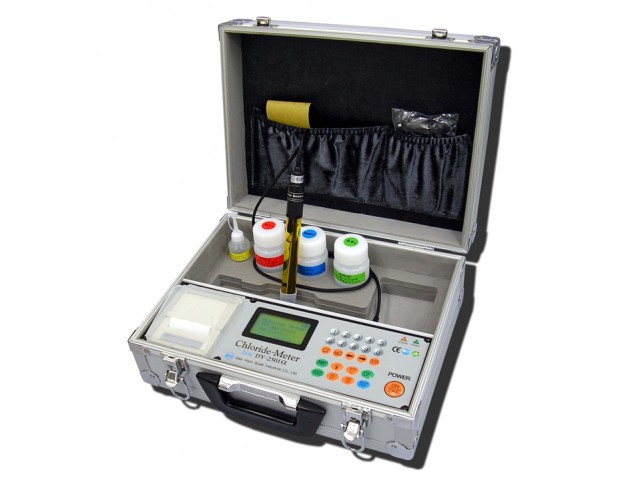

The set up is complete in a Metal Briefcase

  1. Chloride Electrode Combi, Solid State, 190×20mm - 1 No.
  2. Electrode cable & connector 1m, Circular(9mm/6pin) - 1 No.
  3. Chloride Meter Digital LCD Display, Portable type - 1 No.
  4. Electrode Protective Cap Rubber 1 No.
  5. Standard Solution 0.1% Cl- (50ml/500ml) - 2 Bottle
  6. Standard Solution 0.5% Cl- (50ml/500ml) - 2 Bottle
  7. Distilled Water 50ml - 1 Bottle
  8. Reference Filling Solution 39ml - 1 Bottle
  9. Adapter AC110/220V, DC9V - 1 No
  10. Battery Ni-MH 1.2V (Rechargeable) - 6Pcs
  11. Sand Paper #320 - 2 Sheets
  12. Operation Manual English - 1 No
  13. Metal Briefcase - 1 Set
  14. Portable Case Transparent Vinyl case for Portable - 1 Set
  15. Printer Thermal Type(Alkaline Batteries Included) - 1 Set
  16. Printer Roll 57(W) x 35(dia)mm, Heat response roll - 2 Roll
  17. Interface Cable RS-232 cable for computer/Printer - 1 No.
