ISO 37-TYPE 2-SPECIMEN CUTTING DIE
for specimens for tensile tests as per IS: 3400 (Part 1) - 2012 / ISO 37
Compliance Standards
ISO 37 (Type 2), ISO 527-2 (Type 5A), IS 13360 (Part 5 / Sec 2), IS 15058, BIS 15909 (Annex L)
Details
- High Carbon High Chrome die material
- Dumbell shaped die
Notes
(1) No warranty is applicable in case of punch die as smooth & uninterrupted operation of dies depends on various other governing factors such as Proper Alignment of dies, Bottom Support, Technical skills of the operator etc.
(2) This is purely visual and skill based work. Any random un-skilled operator can damage the die and EIE shall not be held responsible for the same.
(3) Use of Saag Wood / Teak Wood as bottom support to withstand the actual force of press after the specimen has been cut is highly recommend. Die shall not be used without reliable Saag Wood / Teak Wood as bottom support.

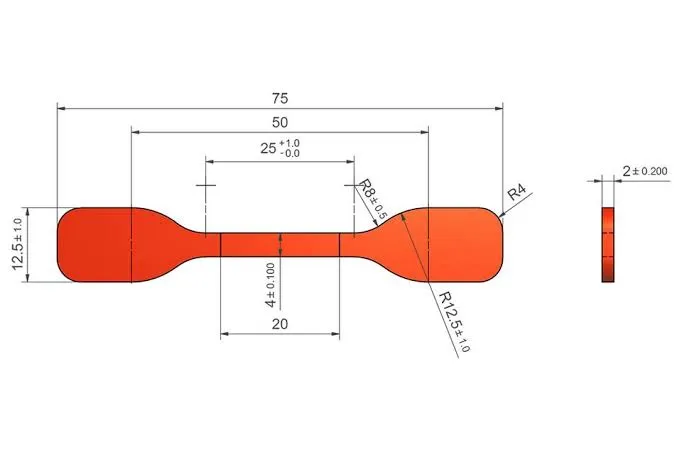

| L2 Overall length (mm) | 75 mm |
|---|---|
| b2 Width at ends | 12.5 ± 1 mm |
| L1 length of narrow parallel-sided portion | 25 ± 1 mm |
| b1 Width of narrow parallel-sided portion | 4 ± 0.1 mm |
| r1 Small radius | 8 ± 0.5 mm |
| r2 Large radius | 12.5 ± 1 mm |
| L0 gauge length | 20 ± 0.5 mm |
| Thickness (mm) | 2 mm ± 0.2 mm |
| Material | High carbon high chrome (HCHC) |
| Maximum cutting depth | 8 mm |
