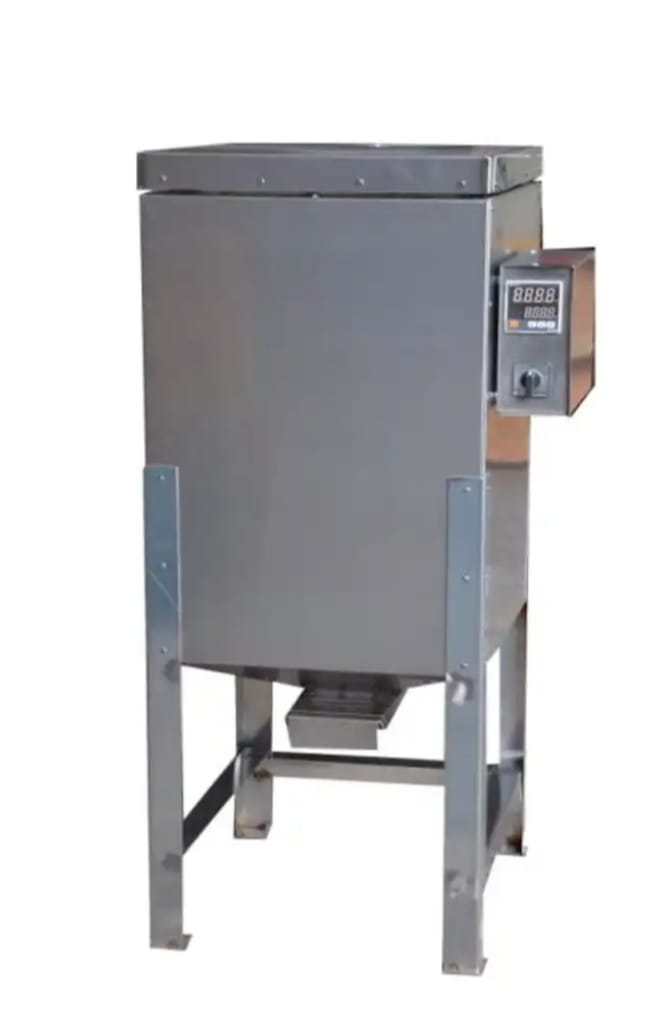

FLUX OVEN - 50 KG - SS - 50 TO 400° C
Double walled, inner chamber MS, Outer CRC with paint , 100 mm thick glass wool insulation , air heaters placed at both side for uniform heat distribution Temp. Range. 50˚C to 400˚C , Auto tune Dual Display Digital, forced air circulation, Working on 440 Volts AC three Phase.
Technical specifications :
- Temperature controller Digital with celebration certificate
- 50-400°C heat Load 3kw. 15 A,230VAC
- Overall dimension : 680 x 670 x 920 mm
- Inner chamber : 480 x 500 x 480 mm
- Temperature Control : Digital PID Controller.
- Number of element six
- Weight 105 kg approx.
