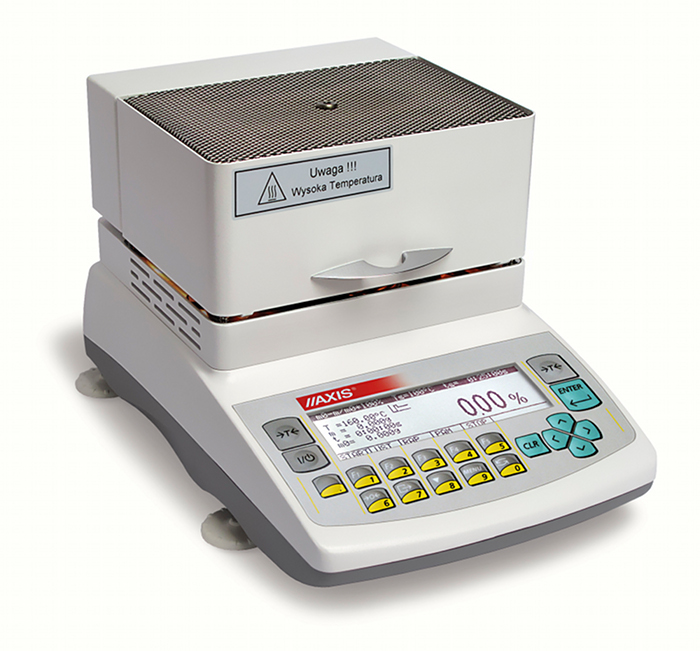

INFRA RED MOISTURE BALANCE - (AGS - 210 IR)
Model Number : AGS-210IR
Detailed Specifications as mentioned in the following page.
Feature :
- Heaters : Infrared Type
- Drying temperature up to 160°C
- Rebust die-cast metal housing.
- Graphical display with backlight & Drying chart displaying.
- Convenient and Easy text menu.
- Reports edition with PC keyboard.
- Storing 20 drying programs.
- Equipped with USB, RS232, PS2 Interface.
- Free PC Software.
- Multiple profiles and analysis modes.
- Drying Report Printing with GLP/GMP. (At Extra Cost)
- Analysis Parameters Memory Bank.
- Available ways to evaluate humidity :
(1) In proportion to initial weight
(2) In proportion to dried weight
(3) Percentage of dried weight
- Drying mode :
(1) time
(2) short (automatic)
| Capacity | 210 gm |
|---|---|
| Resolution | 0.001 gm (1 mg) |
| Moisture Resolution (%) | 0.01% |
| Maximum Drying Temperature | 160°C |
| Heating Technology | Infrared |
| Pan Size ø | ø 90 |
| Humidity Measure Repeatability | ± 0.1% (sample 2g) |
| ± 0,04% (sample 5g) | |
| Humidity Readout Precision | 1% ˂ 0.5gm Sample |
| 0.1% ˂ 5gm Sample | |
| 0.01% ˂ 5gm Sample |
