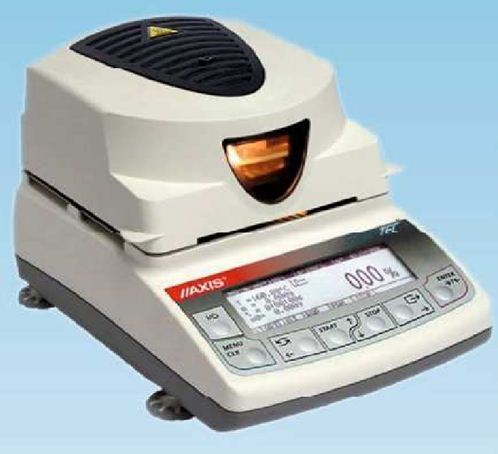

INFRA RED MOISTURE BALANCE - (ATS 210)
Model Number : ATS 210
ATS series moisture analyzers are designed to work in food industry, construction material industry, chemistry, biotechnology, woodworking industry, pharmaceutical industry, environment protection and others. Detailed Specifications as mentioned in the following page.
Features :
- Accelerated Drying Process
- Increased Halogen Radiators Power
- Convenient Text Menu
- Drying Graph Displaying
- Storing 20 Drying Programs
- Cooperation With Printer Or Computer
- Report Edition Using Computer Keyboard
ATS moisture analyzers are used for fast and precise determining of material sample humidity. Scale, which is integral part of moisture analyzer, allows measuring mass loss of material sample placed in a drier. Halogen radiators provide fast drying of a sample. ATS series moisture analyzers are based on mechanism of laboratory balances and BTS series moisture analyzers use load cells.
Time, temperature and profile of drying process can be matched to physico chemical properties of examined material. To facilitate drying parameters
Selection for examined material, moisture analyzers allow initial drying, the results of which are displayed on a graph.
Connecting external printer allows printing measurements reports. In order to facilitate reports edition, connecting Computer keyboard to PS2 port is possible.
When using a computer (freeware program!), it is possible to draw graphs and register measurement results.
Available drying profiles:
Available ways to evaluate humidity:
- Humidity in proportion to initial weight
- Humidity in proportion to dried weight
- Percentage content of dried weight
Drying mode:
- time
- short (automatic)
- manual
- Equipment: disposable pans made of aluminium foil (10 pcs. ) + computer program (archiving, graphs)
| Maximum capacity | 210 gm |
|---|---|
| Balance reading plot (d) | 1 mg (0.001 gm) |
| Minimum sample weight | 20mg |
| Work Temperature | +18 -+33°C |
| Density readout precision | 1% (sample 0,02÷0,5g) |
| 0.1% (sample 0,5÷5g) | |
| 0.01% (sample >5g) | |
| Humidity Measurement Repeatability | ±0.1% (sample 2g), |
| ±0.04% (sample 5g) | |
| Settings Memory | 20 drying programs (for 20 different materials) |
| Maximum Drying Temperature | 160°C |
| Sample Time | 1 - 180s |
| Maximal Drying Time | 10h |
| Drying Mode | time, short (automatic), manual |
| Halogen Radiators | 2 x 100W 78mm |
| Drying chamber heating time up to 100°C | <75s |
| Pan dia | 90mm |
| Drying Chamber Dimensions | Dia 108 x 20mm |
| Connections | RS232C (for computer and printer), USB (for computer), PS2 (for computer keyboard) |
| Supply | ~230V 50Hz 230VA |
| Dimensions. | 185 x 290 x 170mm |
| Weight of balance | 3,9 kg |
| Recommended Calibration Weight (OIML) | F2 50g, F2 100g,F2 200g |
