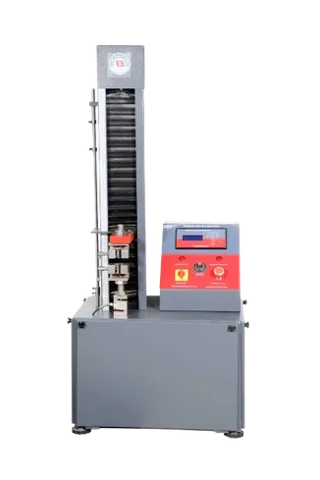

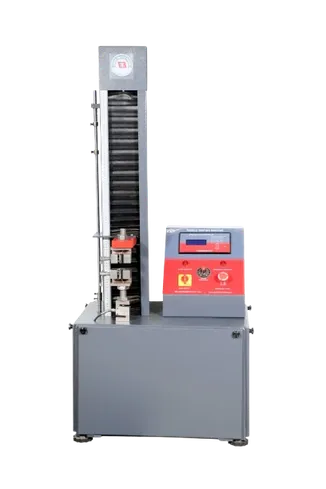

SEAL & PEEL STRENGTH TESTING MACHINE-(DIGITAL)-(50 KGF/0.5KN)-(INDUCTION MOTOR CONTROLLED SYSTEM)
Model Number : EIE-PT-115DP50SP
Compliance Standards:
ASTM F88, ASTM F904, ASTM D882
Applications:
- For Paper/Kraft Paper testing
- For polyfilm testing
Overview:
EIE Make ‑ Computerized Seal Strength tester having capacity of 0‑50 Kgf (0.5 KN) (500 N). Supplied complete with dedicated software program. Equipped with ball screw, Induction Motor, AC Frequency drive & encoder to measure the Seal strength and Elongation values.
Suitable for:
- ASTM F88, ASTM D903 - 180 degree Tensile, Elongation & Seal Strength Test. - Fixture Not Included (Check optional accessories)
- ASTM D6862 - 90 Degree peel test fixture - Fixture Not Included (Check optional accessories)
- Coefficient of Kinetic Friction - Optional Fixture
Salient Features:
- Bench Top Model
- Aesthetic outer appearance
- Unique and compact design features
- Fitted with Microprocessor based PROGRAMMABLE Logical controller
- Peak Hold Facility
- Variable Travel speed
- Computer interface through RS-232 Connection
- Equipped with Ball screw for friction less traverse
- Rotary encoder for high accuracy in elongation
- Reputed make induction motor with dedicated gear box and drive for speed variation and to maintain speed at high torque (at maximum load)
- Easy to use display unit (controller part) and software
- You can get graph for load v/s elongation (stress v/s strain) and also get a excel sheet with a single click.
- Supplied complete with PC Software
Safety Features:
- In‑built Over Load Safety
- In‑built Over Travel Safety
- Auto Reverse facility
- Auto Break
| Type of operation | CRT (Constant rate of Traverse) |
|---|---|
| No. of screws | Single screw mechanism driven through motor & gearbox |
| Exterior Body Paint | Powder coated |
| Load cell Capacity | 50 Kgf (500 N) (0.5 KN) |
| Load cell | ‘S Type’ load cell of reputed make |
| Display | Digital LCD Display |
| Vertical Clearance | 300-500 mm |
| Results displayed on screen | Load, Elongation values, Testing speed and type of test |
| Least count for load | 2 Grams (0.02 N) |
| Least count for elongation | 0.01 mm |
| Load units | Kg/Newton as per selection |
| Speed Range | 20mm/min - 300mm/min |
| Speed control | Through frequency control stepper motor drive |
| Motor for speed variations | Reputed make induction motor with dedicated gear box |
| Pneumatic clamping pressure | Adjustable upto 5 kg/cm2 (Optional Only for Pneumatic Gripping) |
| Software | Specially designed Windows based Graphical Dedicated Software |
| Power Supply | 230 Volt, 50 Hz, Single Phase, AC Supply |
| Data Communication | Through RS-232 Interface |
| Dimension | 2' X 1.5' X 6' (L X W X H) |
| Weight (Approx) | 150 kg |
