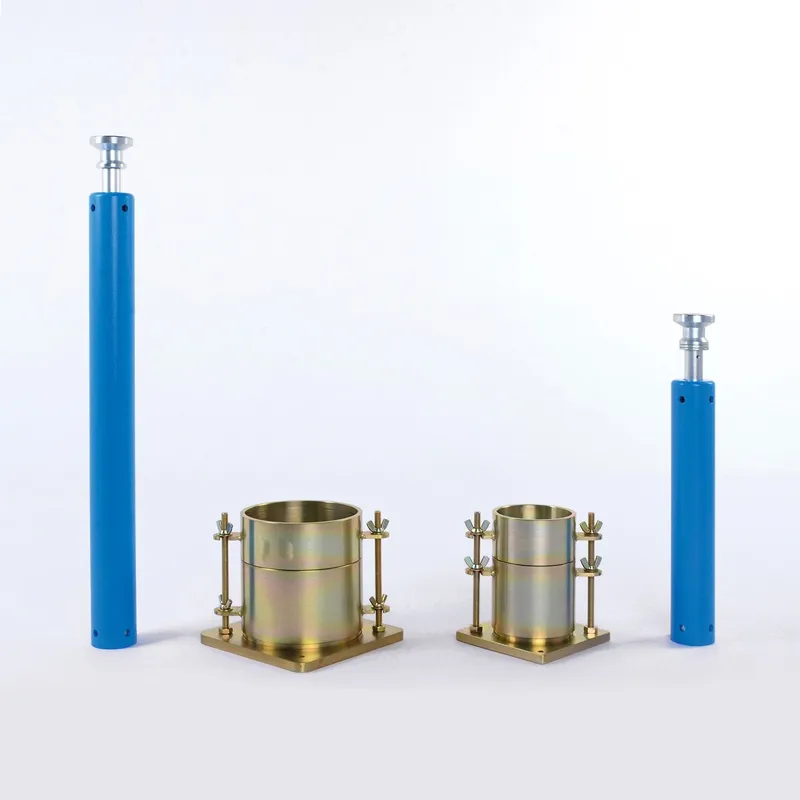

PROCTOR COMPACTION TEST APPARATUS MODIFIED - BS 1377-4-
Model Number : EIE-ST-26BSM
Detailed specification as follows.
Complies with following International Standards
BS 1377:4, BS 1924:2
Purpose
Used for determining the relationship between the moisture content and density of compacted soil.
Construction Details of Modified Proctor Mould
- The moulds include collar, mould body and base plate.
- It will be made of Mild steel having capacity of 944 cm3
- The mould will be fitted with a detachable base plate and removable extension collar.
- The internal surface of the mould will be smooth.
- Complete with our own test certificate.
- Internal diameter of mould : 152 ± 0.5 mm
- Internal effective height : 127 ± 1 mm
- Effective weight of mould : 09 kg
- Volume : 2300 cm3
Construction Details of Modified Rammer
- The rammers are provided with guide sleeve with vent holes.
- It is made of Metal which is chrome plated
- The rammer will be equipped with a suitable arrangement for controlling the drop to the ASTM specified height.
- Rammer diameter : 50 ± 0.5 mm
- Rammer weight : 4.5 kg
- Free fall height : 450 ± 4 mm
- Complete with our own test certificate
