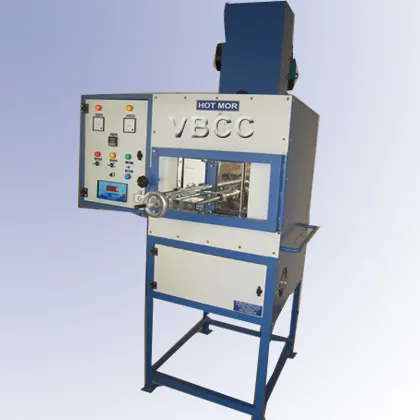

HOT MOR - 1400 DEGREE - DIGITAL
Detailed specification as follows:
HOT MOR - 1400 DEGREE - DIGITAL
| FURNACE STRUCTURE | |
|---|---|
| Furnace | Chamber furnace with preheating zone |
| Outside Shell size | ≈700 x 700 x 1500 mm |
| Useful volume | 200 x 200 x 400 mm |
| Shell Construction | Double Wall High quality fabrication of M. S. Body and M. S. Angle’s structure with proper stiffeners and neat powder coat painting |
| Door Construction | Sophisticated system to avoid heat loss made by Stainless steel door with proper insulation |
| Furnace stand & panel box | Control panel box with a door coupled with furnace Control panel box with a door coupled with furnace |
| Insulation | High alumina Bricks C-29 Grade Cumi make & back up by mechanically pressed zirconia blend ceramic fiber. |
| Skin Temperature | Double wall structure & special air circulating fan will be provided to maintain the skin temperatures just above ambient |
| Loading rod & bottom bearing edges | Silicon carbide |
| HEATING SYSTEM | |
| Heating elements | Silicon carbide (twelve numbers with even Silicon carbide (twelve numbers with even distribution) |
| Make | I SQUIRRED R , USA make |
| Type of element | Solid type |
| Hot zone length | 190mm |
| Total length of element | 600mm |
| Resistance of the element | ≈1 ohms |
| Furnace operation | Three phase / AC |
| Power | 10 kW |
| Maximum Temperature | 1500°C |
| Working Temperature | 1400°C |
| Electrical line requirement | 32A – MCB (three phase with neutral) has to be arrange by the customer |
| Control System | |
| Temperature Control | TAIE (8x2=16 segment) PID programmer cum Digital Temperature controller cum Indicator (Imported) |
| Temperature Sensors | with Recrystalised alumina beads and sheath |
| Accuracy | ±1°C |
| Power Control | through the phase angle controlled thyristor |
| Indications | a) Ammeters b) Mains Indicator c) Out put Indicator |
| Control switches | Mains on, out put on |
| Safety | Input, out put fuses |
| SPECIMAN & TESTING | |
| Test specimen size & Numbers | 25 X 25 X 150mm & 5Numbers |
| Bending mode | 3 point |
| Distance between the support | 125mm |
| Maximum load | 200kg |
| Loading device | Motorized load (Automatic) |
| Measuring Accuracy | ±1% |
| Loading speed | 0.5 ~ 4.0kg/sec |
| Digital out puts | 1. breaking load (Rupture load) |
| AUTOMATION SYSTEM | |
| Control System | 1.Programmable logical controller(PLC) |
| 2. Human Machine Interface(HMI) | |
| PROGRAMMABLE LOGICAL CONTROLLER (PLC) | |
| Input Points | 8 Inputs |
| Insulation Method | Photo-coupler insulation |
| Rated Input Voltage /Current | DC24V / 4mA |
| Operation Indication Input On | LED On |
| COMMON Method | 8 points |
| Output Points | 8 Output |
| Insulation Method | Relay insulation |
| Rated Input Voltage /Current | DC 24V, 2A (Resistive load) / AC220V, 2A |
| Operation Indication Output On | LED On |
| Minimum Load Voltage/Current | DC 5V / 1mA |
| Maximum Load Voltage/Current | AC250V or DC125V / 2A |
| HUMAN MACHINE INTERFACE (HMI) | |
| Screen Size | 5” Wide |
| Resolution | 800 X 480 |
| LCD | TFT 65,536 |
| Brightness | 350 cd / m2 |
| Touch Type | Analog |
| CPU | 32 bit RISC |
| Operating Power | 24Vdc (DC 20 – 28 V)15 watts |
| Internal Communication | RS-232C |
| External Communication | RS-232C |
| RS-422/485 | |
| External Dimension (W x H x D) | 206 x 136 x 64 (mm) |
| Front Enclosure | IP65F |
