TUMBLER DRUM TEST APPARATUS - IS 6495: 1984
Tumbler test provides a measure of the resistance of iron oxides:lump ores, sinter and pellets to breakage or degradation by impact and abrasion as per IS 6495.

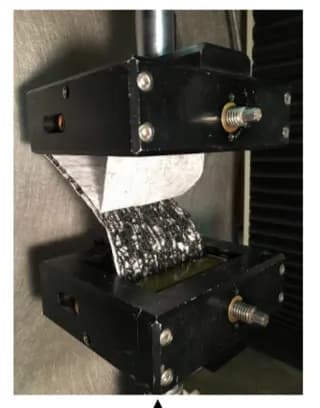

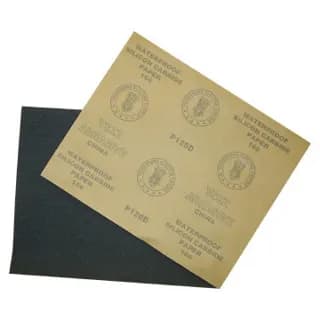

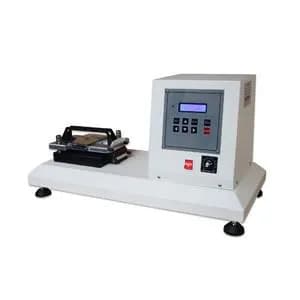

ABRASION RESISTANCE TESTING MACHINE FOR GEOTEXTILE - ASTM D4886
Geotextile Abrasion Resistance Tester is used to determine the resistance of geotextile or geotextile-related products to abrasion using an abrasion tester by Sand Paper/Sliding Block Method. It is only applicable to geotextile, not to geomembranes, geogrids. A predetermining electro-magnetic counter allows the sample to be abraded to the desired number of strokes.
DETERMINATION OF FROST RESISTANCE-(BIS 13630-10, EN ISO 10545-12)
Compliance standards: EN ISO 10545-12, ASTM C1026, IS 13630 (Part-10), Suitable for tile size up 500 X 500 mm.
DETERMINATION OF MODULUS OF SUBGRADE REACTION (K-VALUE) OF SOILS IN FIELD
This method for the determination of modulus of subgrade reaction of the soil in place (generally known as K-value of the subgrade ), for evaluation of strength of subgrade for roads, runway pavements and raft foundations. The set up consist of Bearing plates of 75cm dia, 60cm dia, 45cm dia and 30cm dia X 25mm thick (1 No.each size), Loading attachment with ball and socket joint, Hydraulic or Screw Jack of 150 KN Capacity, Calibrated Proving ring of 150 KN with dial gauge, Digital Dial gauge of 0.001mm x 12.7mm travel (3 Nos.),Datum bar of 5 meter length, Jack pads. Supplied without reaction beam. On site arrangement for Reaction Beam or Truss or Truck or Trailer (as per the requirement of test) will be arranged by the user/customer. As per IS:9214-1979

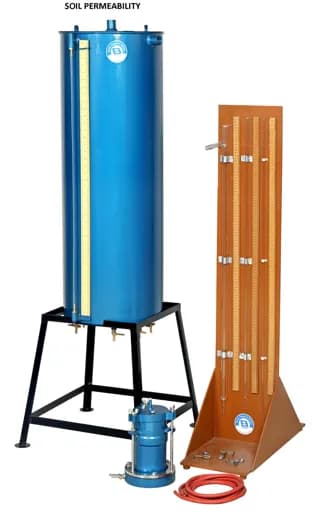

SOIL PERMEABILITY APPARATUS FOR CONSTANT AND VARIABLE HEAD TEST - IS 2720 (PART -17)
The permeability test of soil, as per IS:11209, is intended to determine the coefficient of permeability, which describes how easily water can flow through soil. This parameter is essential for understanding groundwater movement, soil drainage properties, and designing earth structures like dams, retaining walls, and foundations. The apparatus will be confirming to IS: 2720 (Part-XVII), IS 9198 & IS: 11209 latest edition
THERMAL CONDUCTIVITY BY GUARDED HOT PLATE METHOD FOR AAC BLOCKS
Measures the steady-state heat flux through flat specimens when their surfaces are in contact with solid, parallel boundaries held at constant temperatures. The guarded-hot-plate apparatus consists of a metered section and a primary guard, designed to create isothermal surfaces on the specimen faces, ensuring unidirectional heat flow. Procedure Involves placing the test specimen between a hot plate and a cold plate, establishing a steady-state temperature gradient, and measuring the heat flux through the specimen. Commonly used to evaluate the thermal insulation properties of materials in industries such as construction, manufacturing, and materials science.

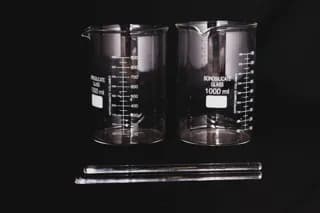

APPARATUS FOR STABILITY TO MIXING WITH CEMENT - IS 8887, ANNEX-G
As per IS:8887-2018 (Annex.G)

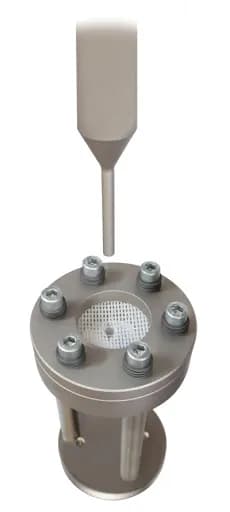

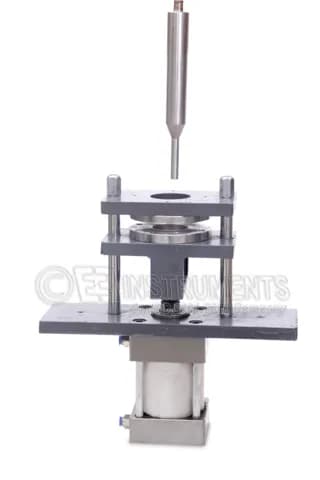

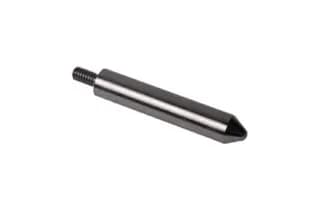

ASTM D4833-HYDRAULIC GRIPPING-INDEX PUNCTURE TEST OF GEOMEMBRANE
As per ASTM D4833, IS 15907:2010 - Annex C To determine index puncture resistance of Geomembrane
RUST PREVENTION TEST APPARATUS-(ASTM D665, ASTM D5534, ASTM D3603)
A robust instrument designed for testing corrosion resistance of petroleum products, compliant with international standards: IP 124, ASTM D665, ASTM D3603, ASTM D5534, and NACE TM0172. It features precision temperature control, durable construction, and a comprehensive set of accessories.

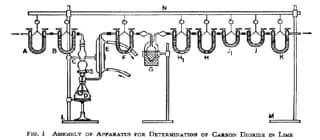

ASSEMBLY OF APPARATUS FOR DETERMINATION OF CARBON DIOXIDE IN LIME
Assembly of Apparatus for determinaion of carbon dioxide in building lime: IS 6932-2(1973) standard ( Part II )

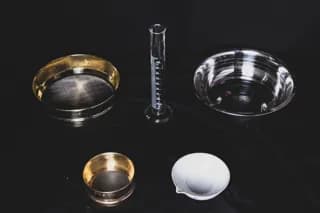

WET WASHING SIEVE - 75 MICRON
The wet washing sieve method is critical for reliable grain size analysis, especially when testing fine-grained or cohesive soils. It ensures better separation of particles and improves the accuracy of soil classification. Standards such as IS 2720 (Part 4), ASTM D1140, and AASHTO T11 define the procedure and requirements for conducting the test.
DIGITAL MAN HOLE COVER TESTING MACHINE - 500 KN
The manhole cover testing machine is designed as per IS 12592. The machine will be able to accommodate manhole cover of 1200 mm x 1200 mm size. With variable pace rate of the machine from 2 kN / sec to 10 kN / sec. The machine with digital read out, showing actual load, peak load and permanent set .
AUTOMATIC FLEXURAL STRENGTH TESTING MACHINE
As per IS:9399-1979 (R.A.2013)/IS 516 (Part 1/Sec 1) : 2021, BS:1881 and ASTM C78, EN 12390-5, AASHTO T22, Automatic test execution. Controllable pace rate from 1.0 KN/Sec to 10 KN/Sec
