CONCRETE PENETROMETER SPRING TYPE - (PENETRATION RESISTANCE APPARATUS) - IS 8142. IS:1199-PART 7
As per ASTM C403, IS:8142, IS:1199-part 7
CONE FOR FLUIDITY TEST AS PER BS EN 445/ EN 447:2007
The fluidity of the grout, expressed in seconds, is a measure of time necessary for a stated quantity of grout to pass through the orifice of the cone, under the stated conditions.
TENSILE TESTING MACHINE FOR HDPE BAG - 250 KGF (2.5 KN)
Computerized Tensile Strength testing machine having capacity of 0‑250 Kgf (2.5 KN) (2500 N). Supplied complete with dedicated software program. Equipped with ball screw, Induction Motor & drive (for speed variation 50mm/min to 300mm/min) along with encoder to measure the elongation using pair of grips. As per IS:11761 -1997 / IS:11652-2000 / IS 12154 / IS:16709-2017
CONE DROP TESTER FOR GEOSYNTHETIC (DYNAMIC PERFORATION TESTER)
Mainly used to measure the puncture strength as well as the fabric quality to withstand aggregate penetration. As per EN ISO 13433 (2006), BS 6906 (Part 6), EN 918
EIGHT CELL RCPT
The Rapid Chloride Permeability Test (RCPT) evaluates the resistance of concrete to chloride ion penetration, as per ASTM C1202, AASHTO T277, and equivalent standards. This test measures the electrical charge (in coulombs) passed through a concrete sample over 6 hours, reflecting the material's permeability to chloride ions.

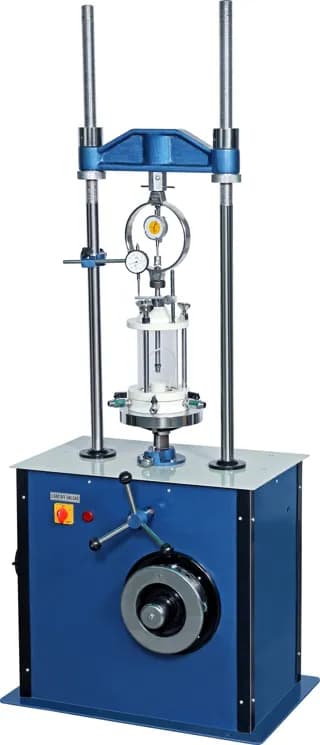

TRIAXIAL SHEAR TEST APPARATUS - FOR 38MM DIA SPECIMEN - FOR UU, CD AND CU.
As per (IS:2720 Part XI & XII ) for determining the shear strength parameters of saturated soils from triaxial compression shear tests conducted under consolidated undrained conditions with measurements of pore water pressures. The Triaxial Test System provides triaxial compression tests on cylindrical undisturbed and remolded soil samples. Unconsolidated undrained (UU), consolidated drained (CD) and consolidated undrained (CU) compression tests can be carried out using this apparatus. Supplied complete with Triaxial cell for 38mm dia specimen, Loading Frame 50 KN with 6 different speeds, Proving ring 2 KN with Calibration report, Dial Gauge 0.01 X 25mm travel, Analog readout to measure pore water pressure and Air/Water Constant Pressure system with air compressor.. To work on 220/230 Volts, single phase, AC power supply. Volume Change Gauge, De-airing apparatus, Accessories for soil sample preparation, extrusion, trimming and for measurement of size, weight, water content, etc. can be supplied at extra cost .
DIGITAL VACUUM REGULATOR FOR KINEMATIC VISCOSITY BATH-FOR 4 VISCOMETERS
For Precise Measurement and Control of Vacuum at 300 mm Hg Below Atmospheric Pressure: Ideal for method ASTM D2171
ELECTRONIC WEIGHING BALANCE-200 GM-0.001 GM (1 MG)-EXTERNAL CALIBRATION-MODEL SAB 203-
With RS-232 Standard, USB Interface
