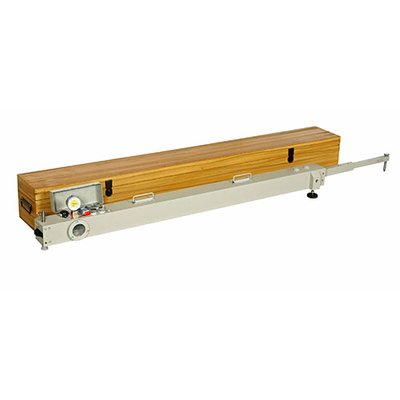

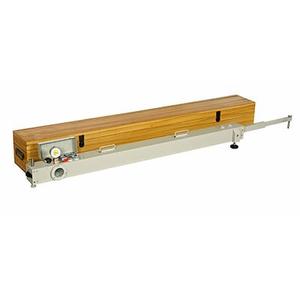

BENKLEMAN BEAM APPARATUS
Model Number : TM-050
The Benkelman Beam test is widely used to evaluate the deflection of flexible pavements under a standard wheel load, which helps assess the structural condition and design appropriate overlays. As per IRC: 81-1997, ASTM D4694, AASHTO T 256
Purpose:
The test measures the rebound deflection of a pavement surface to determine the pavement's ability to sustain traffic loads and predict overlay thickness for rehabilitation.
The light weight instrument is supplied in two parts for assembling on site with easy hand tools. In use one end of the beam rests at a point under investigation while the beam is pivoted at the centre. The free end carries a dial gauge to record the deflections. The other end is 2:1 which magnigies even. small deflections. Supplied with a dial gauge 0.01 X 25mm.
| Overall Dimensions | 2590 X 381 X 381(L X W X D) mm |
|---|---|
| Net weight (in kg) | 19 kg |
