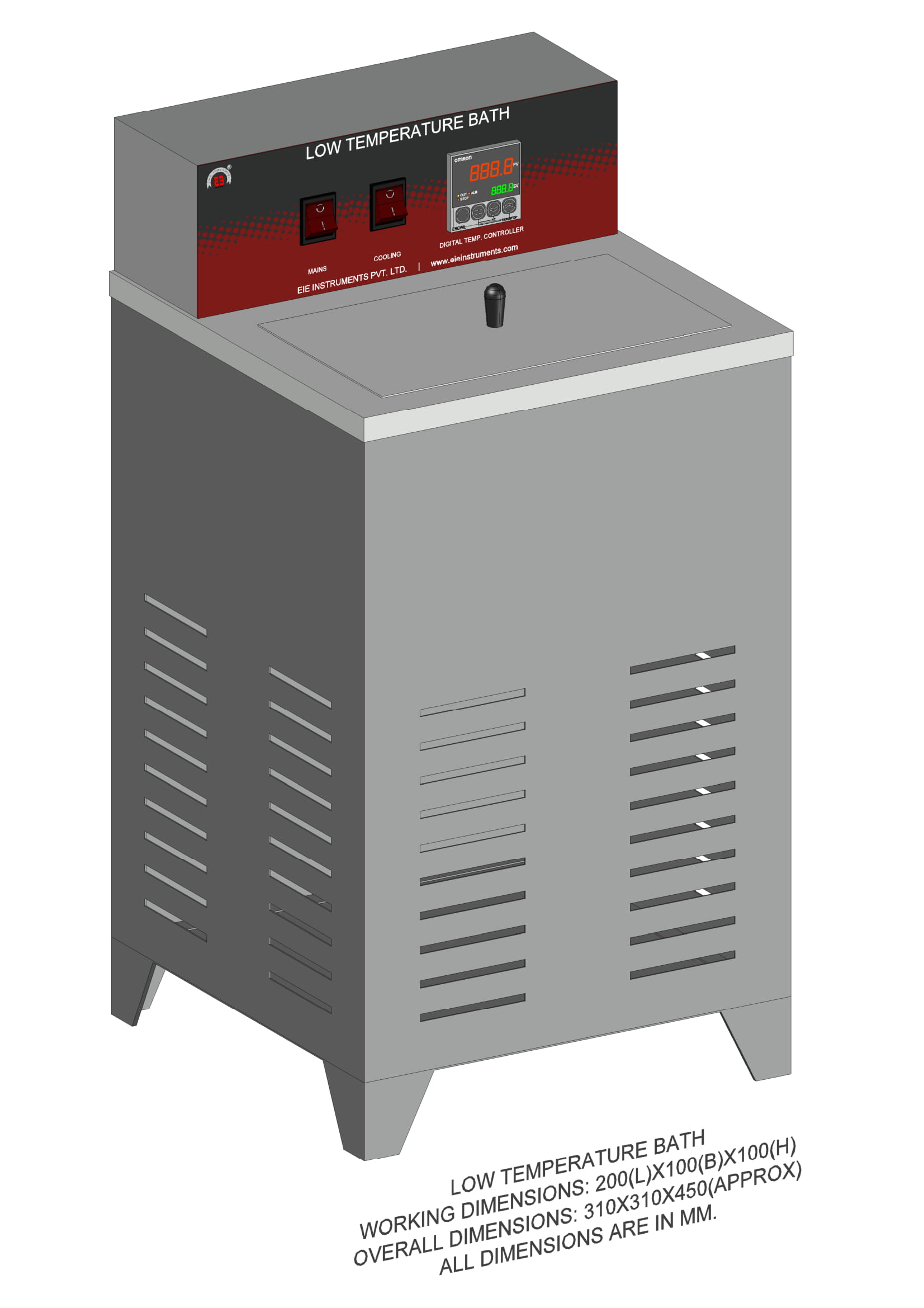

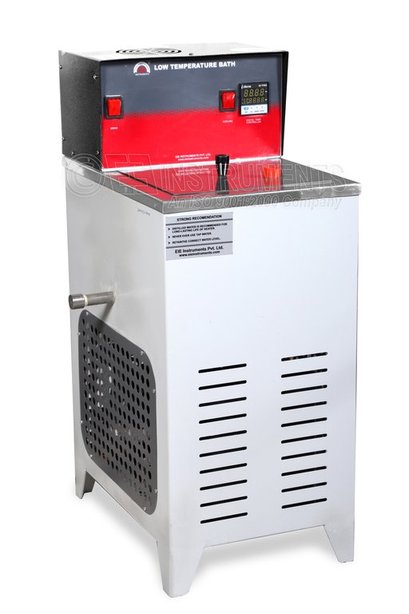

LOW TEMPERATURE WATERBATH
Model Number : EIE-413DP20
Detailed Specifications as mentioned in the following page.
Salient Features:
- Double walled
- Highly efficient model
- Aesthetic outer appearance
- Easy operation and hassle free maintenance
- Works as external chiller to various laboratory testing instruments
| Construction | Double walled |
|---|---|
| Inner chamber | Stainless steel S.S. - 304 |
| External body | Mild steel |
| Exterior Body Paint | Powder coating |
| Insulation thickness | 75mm |
| Temperature controller | Microprocessor based PID digital controller |
| Temperature Accuracy | ± 0.5 °C |
| Temperature Range | 5 °C - 50 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Uniformity | ± 1 °C |
| Heating element | Immersion heaters |
| Refrigeration System | Hermetically sealed ISI marked KIRLOSKAR OR EQUIVALENT make compressor for minimum noise level and smooth operation |
| Refrigerant | R-134A Gas |
| Motorized Stirrer | For uniform temperature distribution |
| Stirrer material | Stainless Steel S.S. - 304 |
| Chamber Size | 250 X 200 X 200 mm |
| Chamber volume | 10 Liters |
