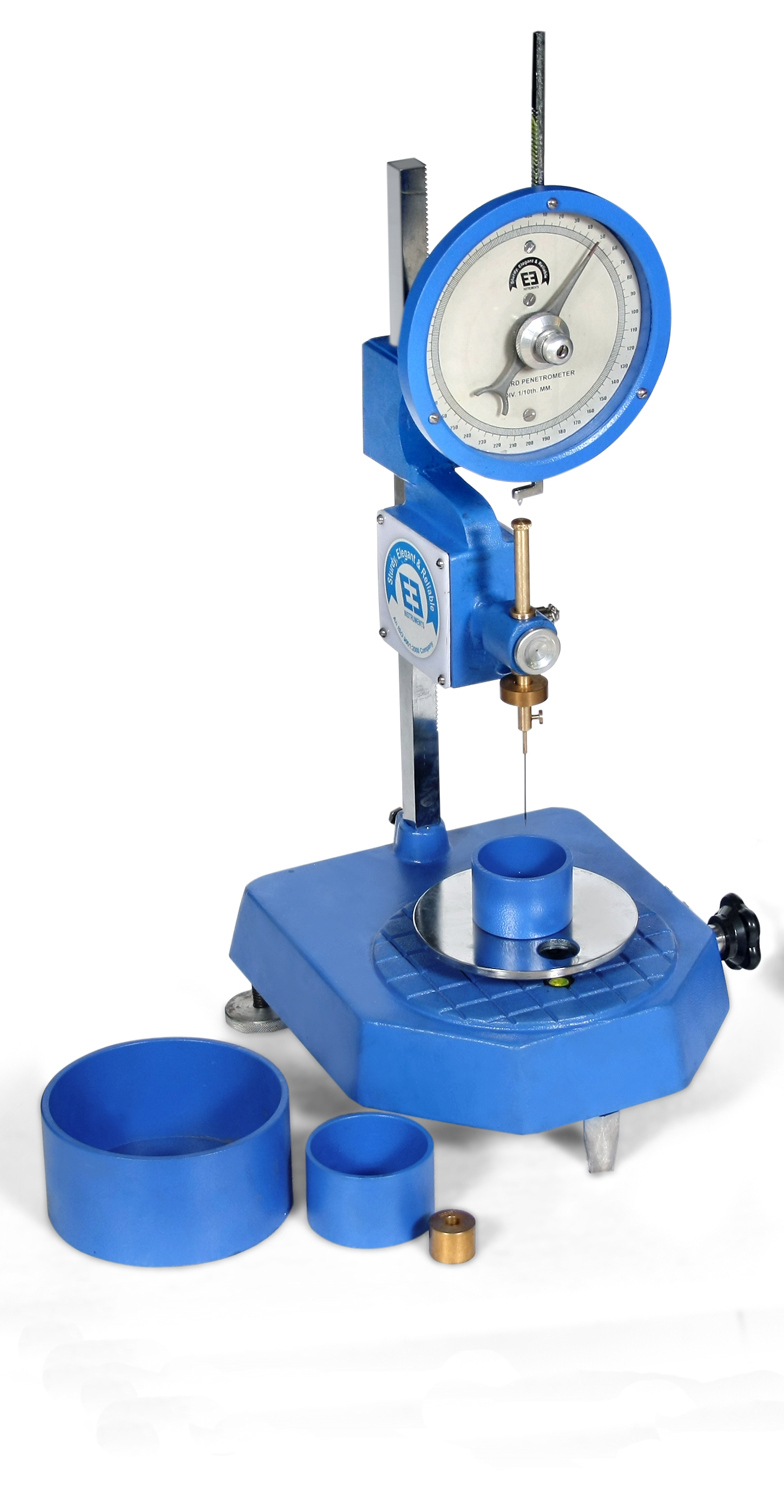

STANDARD PENETROMETER FOR BITUMEN
Model Number : TM-044ATGB
As per IS 1203. Basic Model with fine adjustment facility for ease of precise setting.. As per IS 1203. The apparatus consist of a cast aluminum base with an iron stand on which moves an aluminium arm. A 6" dial is fixed on this arm and a brass chromium plated rod slide through the lower portion of the arm. A needle with weights is fitted to this rod. The dial is graduated from 0‑400 in one tenth millimeter sub division. Supplied complete with adjustable needle holder, penetration needle, sample container, transfer dish and weight of 50 gm. Digital stop watch is essential to perform the test at extra cost. Model with Automatic controller and fine adjustment facility also available.
MODEL TYPE
Key Features:
- Precision-engineered for accurate bitumen penetration testing
- Compliant with ASTM D5, AASHTO T49, and other international standards
- Adjustable penetration needle for various test requirements
- Digital timer for precise test duration control
- Easy-to-read scale for accurate measurements
- Sturdy construction for laboratory durability
Applications:
- Quality control in bitumen production
- Road construction material testing
- Asphalt mix design
- Research and development in paving materials
Benefits:
- Ensures consistent bitumen quality
- Helps optimize pavement performance
- Supports compliance with industry standards
- Enhances quality control processes
| Overall Dimensions in Inches (L x W x H) | 9 x 11 x 21 |
|---|
