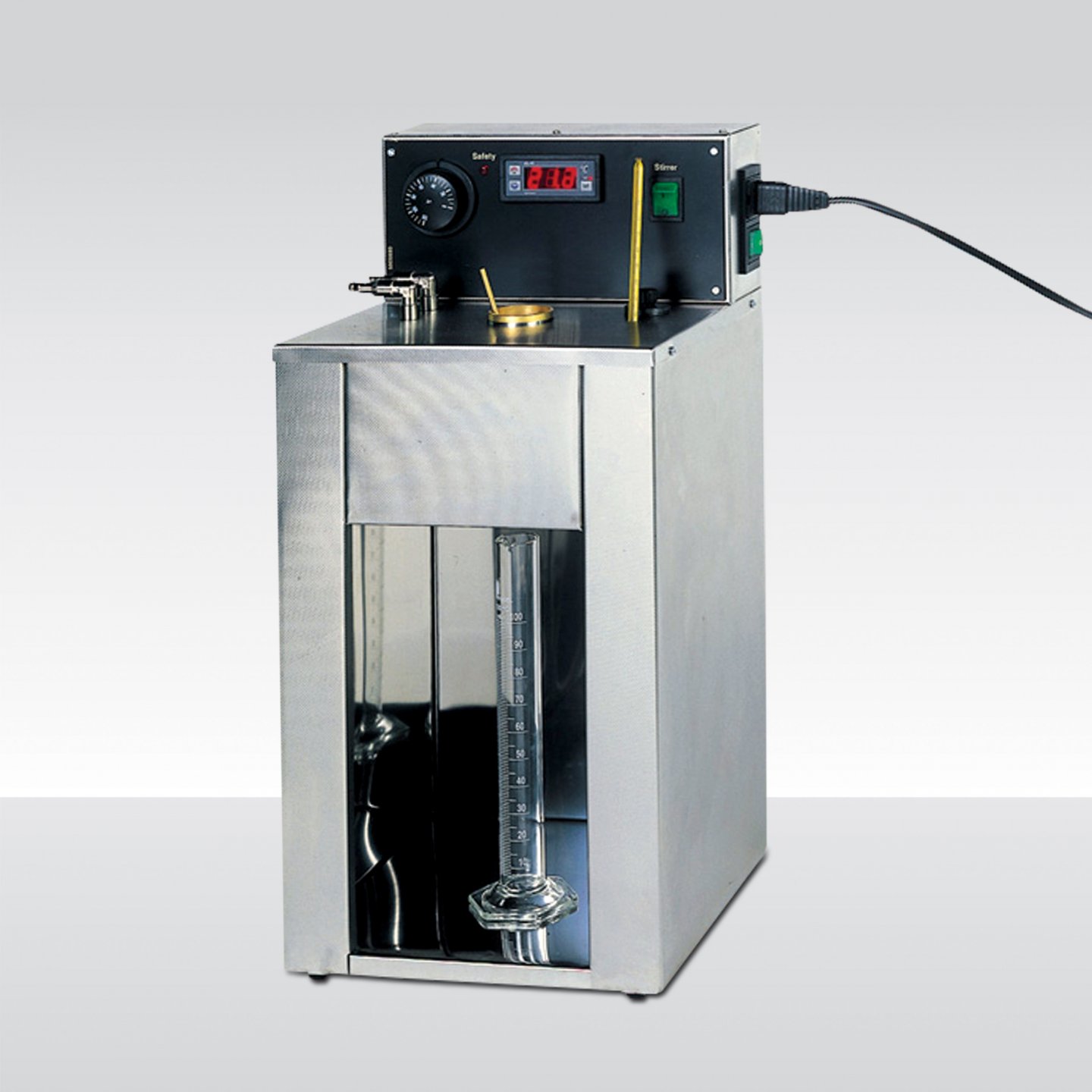

TAR VISCOMETER - DIGITAL WITH MOTORIZED STIRRER
Model Number : TM-047DM.1
As per IP 72, IS 1206 and BS 3235, Electric heated with Digital Temp. Controller & Indicator with F.H.P Motor Stirrer & lighting arrangement. Supplied without Stop watch, Flask receiver and IP/ASTM Glass Thermometers. These are quoted separately and available at extra cost
Compliance with Following International Standards:
IP 72, IS 1206 and BS 3235
| Exterior body | Fabricated from Mild steel Material, which is powder coated in attractive shades |
|---|---|
| Interior chamber | Fabricated from Stainless Steel Material (S.S. - 304) Grade quality |
| Temperature controller | Microprocessor Based Auto-Tune Digital PID Controller cum Indicator |
| Controller Make | Reputed Make |
| Temperature sensor | RTD Pt-100 sensor for temperature sensing |
| Temperature Accuracy | ± 0.1 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Display | LED Display |
| Orifice Cups | 10mm or 4mm (any one) |
| Electric Motor | Of reputed Make |
| Operate on | 230 Volts, 50 Hz, Single Phase, AC Supply |
| Overall Dimensions | 445 X 290 X 550 (L X W X D) mm |
| Weight (Approx.) | 12.600 Kg |
STOP WATCH - DIGITAL
GLASS THERMOMETER - IP 8C - (0/45°C X 0.2°C) - FOR LOW RANGE KINEMATIC VISCOSITY
GLASS THERMOMETER - (IP 9C) - (40°C / 85°C X 0.2°C) - FOR FLUSHING CASE MEDIUM
GLASS THERMOMETER - (IP 10C) - (76°C / 122°C X 0.2°C) - REDWOOD HIGH

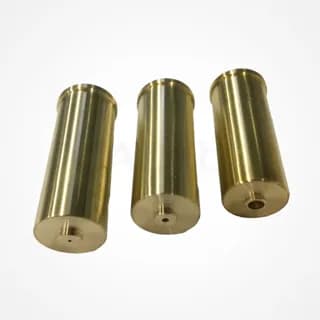

ORIFICE CUP 4 MM FOR TAR VISCOMETER-BIS 1206 (PART-1)

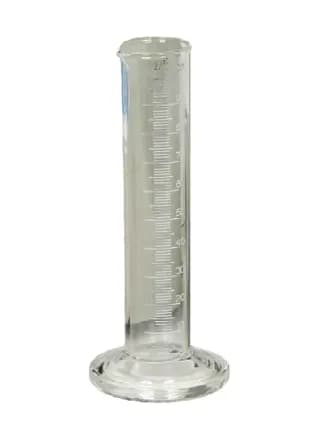

FLASK RECEIVER - GLASS 100 ML FOR TAR VISCOMETER
