AIR ENTRAINMENT METER - (ASTM C231, AASHTO T152) - (7 LITERS) - (WASHINGTON TYPE)
Model Number : DYA-107
Detailed specification as follows.
Compliance Standards:
ASTM C231 - TYPE B, BS-1881-106, AASHTO T152, EN 12350-7, IS 1199 (Part - 4) Pressure Gauge method (Clause 4.4)
Details:
- Accurate, high-quality, and easy to use for testing air-entrained concrete
- Lightweight, compact and durable
- Allows quick clamping system and testing with few pump strokes.

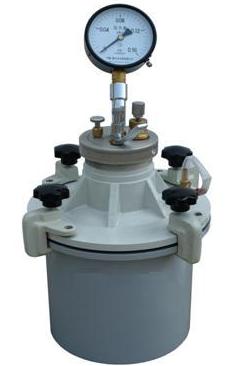

- Consists of an aluminum cylindrical vessel with airtight cover assembly
- Assembly also incorporates an air pump, a precision pressure gauge and valves.
| Measuring Method | (1) Water filled & (2) No water |
|---|---|
| Capacity | 07 Liters |
| Pressure gauge | Bourdon tube type prassure gauge |
| Measuring Accuracy | ±0.1% upto 0-7% of the scale and ±0.2% from 7-10% of the scale |
| Dimensions | 290 x 300 x 610 mm (L X B X H) |
| Weight | 9.0 Kgs |
| Air content range | 0-10% |
