BUOYANCY BALANCE-IS:2386 (Part III)
For Water absorption and specific gravity test of aggregates. As per EN 12390-7, BS 1881:114, IS:2386 (Part III),ASTM C127 and C128: AASHTO T 85 and T 84
BULK DENSITY CYLINDRICAL METAL MEASURE
Used for determining the unit weight and voids in aggregates as per standard test methods. The apparatus is made from thick gauge mild steel, ensuring rigidity and shape retention. Features a water-tight construction, smooth interior finish, and precision machining for accurate measurements. Fitted with handles for easy handling.
V FUNNEL TEST APPARATUS
V Funnel is one of the apparatus of the SCC (Self Consolidating Concrete) test. Primarily used for viscosity determination. This test also gives the filling ability of the concrete.

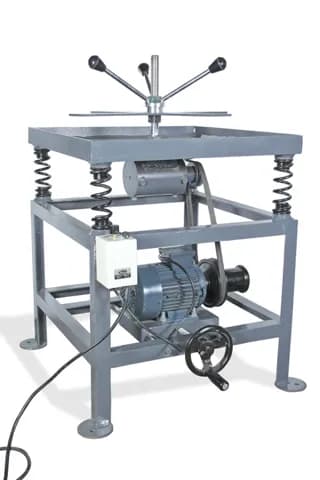

VEE BEE CONSISTOMETER-IS 10510
As per IS:10510-1983 and IS:1199-1959, Consists of a vibrating table (380 mm × 260 mm) resting on elastic supports at about 305 mm height, complete with start/stop switch, cord, and plug. A holder with detachable swivel arm is provided, fitted with funnel, guide sleeve, and graduated rod with plastic disc to record slump in mm.Supplied complete with sheet metal container with lifting handles, slump cone (open at both ends), and tamping rod (16 mm dia × 600 mm long, rounded at one end).
COMPRESSION TESTING MACHINE - AUTOMATIC PACE RATE CONTROLLED
Manufactured as per International design, Plate model for highest mechanical stability, accurate centering of load and excellent repeatability. Automatic pace rate control, auto stop and manual release on failure of test specimen. Inbuilt pen drive slot. (saves reading in excel format) (Record date-time, Sr no and Peak load and N/mm2)

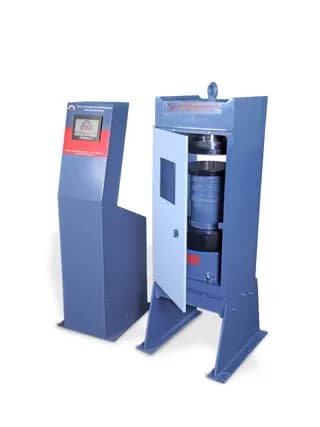

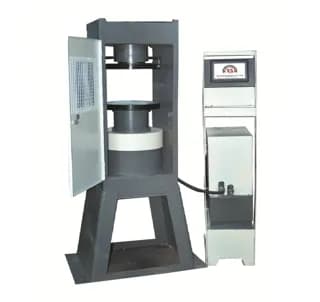

COMPRESSION TESTING MACHINE - FULLY AUTOMATIC - SERVO CONTROLLED
This machine is essential for precise and efficient concrete strength testing, ensuring compliance with industry standards critical to civil construction. It is widely used in construction projects and laboratories to validate the quality and durability of concrete materials. Conforms to EN 12390-4, ASTM C39, AASHTO T22, IS: 14858 (2000), and other international standards like ISO 7500-1 and JIS A 1108. Automatic Operation: Minimal user input required; automatic rapid piston approach, test speed adjustment, and motor stop after specimen failure.Adjustable pace rate (0.1 kN/sec to 10 kN/sec) with dual-stage pump for fast and precise execution. Robust Frame: High-stiffness welded frame with a heavy-duty spherical seat for accurate specimen alignment.PC software for two-way communication, result storage, and report printing.

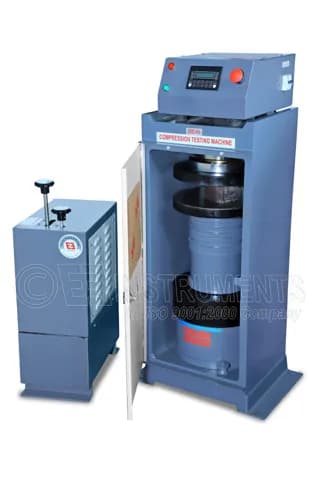

COMPRESSION TESTING MACHINE (CTM)-DIGITAL
Our CTM Machine features advanced load cell technology for precise force measurement and a stable plate model for accurate load centering. With manual pace rate control, you can easily adjust testing speeds across a wide range of conditions, ensuring versatility in all your testing needs. Safety and efficiency are integrated with an auto-stop function and a digital display that shows load readings in both KN and N/mm², automatically calculated for ease and accuracy. Ideal for any construction project, this machine helps maintain the highest quality standards.

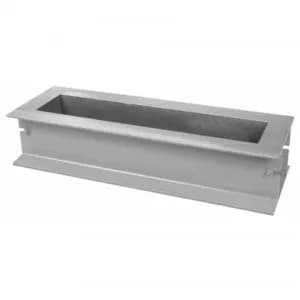

BEAM MOULD
Manufactured as per IS:10086 / IS:10086-2021 standards, available in both Cast Iron and Mild Steel construction. Cast Iron moulds feature 10mm plate thickness with base plate, weighing approx. 20 kg (total 28–30 kg) and 45 kg variants (size 150 × 150 × 700 mm). Mild Steel moulds are low cost, approx. 28–30 kg, However, for Mild Steel variants, strict BIS dimensional accuracy and tolerance cannot be assured, and no rejection will be accepted on account of quality variations.
BALLAST SIEVE
Ballast Sieve is used for grading and particle size analysis of railway ballast and coarse aggregates. It helps determine the size distribution of materials to ensure compliance with specified standards for construction and railway engineering applications.

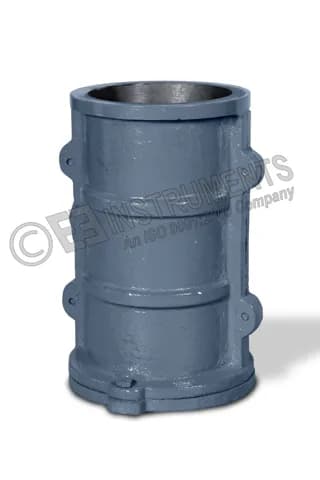

CYLINDRICAL MOULD
Cylindrical Moulds are used for casting concrete specimens for compressive strength testing. Available in various standard sizes and manufactured in compliance with relevant IS specifications, these moulds are offered in both ISI-marked (Heavy Duty HT-PU) and non-ISI variants. Made from high-quality Cast Iron they ensure durability, dimensional stability, and ease of handling. Ideal for laboratory and field applications, designed to deliver consistent and reliable specimen preparation.

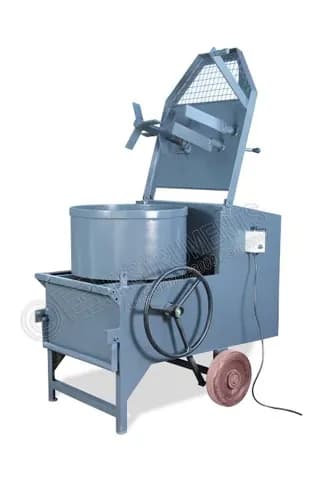

PAN MIXER-40 LTRS
Suitable to Cast 9 Cube Mould of 15 cm at a time in single batch.

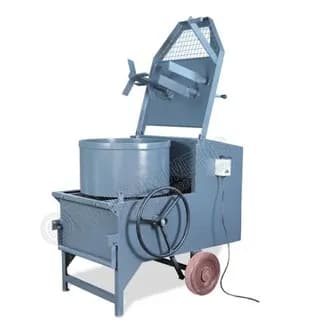

PAN MIXER
Our Concrete Pan Mixer is engineered for optimal performance and durability. Designed to cater to both professionals and DIY enthusiasts, this mixer ensures a thorough and consistent mix every time. The robust pan mixer is perfect for a variety of materials, from cement to concrete, making it an essential tool for construction projects. Its high-quality mixing pan for concrete guarantees efficient and uniform mixing, reducing labor and time. Whether you're looking to pour foundations, driveways, or patios, our concrete mixing pan stands out as a reliable choice for precise and durable construction work. Experience enhanced productivity and superior mixing with our top-of-the-line Concrete Pan Mixer.
FILL BOX APPARATUS
Made of Mild steel - powder coated or spray painted
ROTAP SIEVE SHAKER
The Rotap Sieve Shaker is a robust and highly efficient laboratory device used for particle size analysis in various materials. It is renowned for its mechanical simplicity and precision in generating a consistent, repetitive tapping and circular motion, which ensures accurate sieving results. Ideal for use in industries such as pharmaceuticals, chemicals, and construction, this machine helps in determining particle size distributions, thus ensuring quality control and compliance with industry standards.

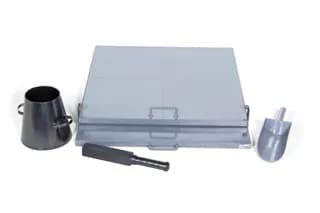

FLOW TABLE (CONCRETE)
Flow Table for Concrete is designed to determine the workability and flow characteristics of fresh concrete in accordance with IS:1199 (Part 6):2018, IS:9103, and EN 12350-5/12350-8 standards. The unit is supplied complete with a slump cone and is available in three table sizes: 700 × 700 mm, 900 × 900 mm, and 1000 × 1000 mm. Models are also available with Brass Top and Mild Steel Top of 762 mm (76.2 cm) diameter as per IS:1199-1959 (Reaffirmed 2004). The equipment is offered in both hand-operated and motorized versions, ensuring reliable and uniform performance for laboratory and site applications.

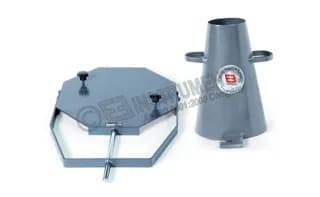

SLUMP TEST APPARATUS
As per IS 7320 and IS 1199. Consist of Slump Cone, base plate and graduated Tamping rod.
ORIMET TEST APAPRATUS
Made of steel with 600 mm tube length and 120 mm inner dia, fitted with a 70 mm orifice. The orifice is interchangeable as per test requirement. Provided with an extendable tripod for stable use. Supplied with 2 nos. 10/12 ltrs heavy mild steel buckets for filling and collecting Orimet. Also available in full S.S.construction.

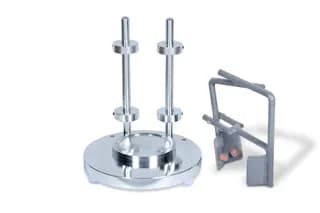

CAPPING SET - VERTICAL
As per IS:1199(Part-5). Complete with Cylinder capper and Capping plate for concrete blocks.

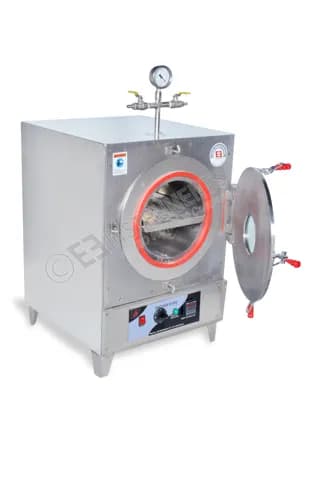

VACUUM OVEN
Double walled, working chamber of cylindrical design made of S.S.316 mirror polished and outside made of S.S.304. The door is of S.S. with center glass window for viewing without opening the door. Temp.controlled from 50°C - 200°C by AUTO TUNING PID Digital Temp. indicating controller, complete with Vacuum gauge, vacuum release valve, a removable shelf but without vacuum Pump. Working on 230 V AC Single phases. Both Inner SS Model and GMP Model are available with us.

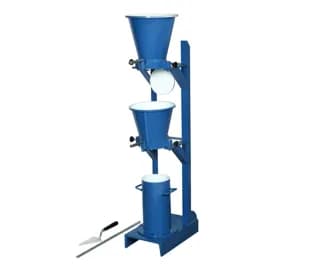

COMPACTION FACTOR APPARATUS - IS 1199
AS PER IS: 5515: 1199. The apparatus consist of two conical hoppers and a cylinder, mounted on a rigid metal frame. The lower openings of the hoppers are fitted with hinged trap doors for release and during the fall of the material. Complete with trowel and tamping bar 0‑60 cm long X 16mm dia.

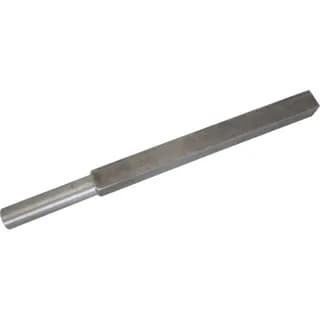

TAMPING BAR - IS:516 PART 6
A straight compacting bar made of steel having a rectangular shape of approximately 25 mm × 10 mm, a length of approximately 600 mm and with a ramming face square with the axis.

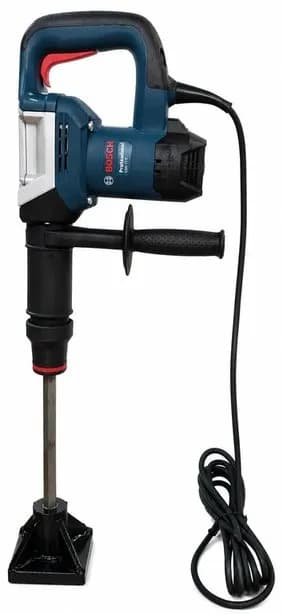

VIBRATING HAMMER - PORTABLE
Used for the compaction of concrete specimens. Using the appropriate tamping foot, it can also be used for compacting concrete cube. As per MORTH Section 903.5.1.1., the hammer will be fitted with a square or rectangular foot having an area between 7500 to 14000 sq.mm.
ELECTROMAGNETIC SIEVE SHAKER
An electromagnetic sieve shaker is a sophisticated laboratory instrument used primarily for particle size analysis by utilizing a set of standardized sieves. This device is essential in fields such as construction, pharmaceuticals, food processing, and materials science.
VIBRATING TABLE - 150 X 200 CM
For compaction of concrete cube, beams and cylinders. Operation on 440 V, three phase, A.C. supply.

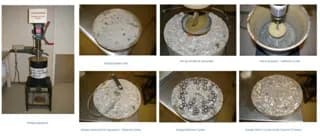

ABRASION RESISTANCE OF CONCRETE - ASTM C1138
The underwater abrasion resistance test (ASTM C1138) evaluates the durability of concrete surfaces when exposed to hydraulic forces and suspended abrasive materials, as commonly encountered in hydraulic structures. The test quantifies the abrasion resistance by measuring the mass loss of concrete specimens subjected to a rotating propeller in water containing abrasive particles.

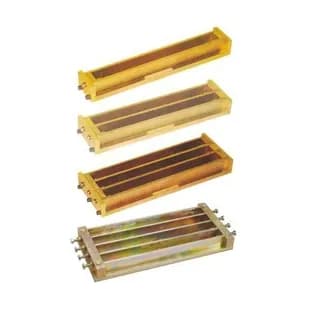

SHRINKAGE BAR MOULD
High-precision Shrinkage Bar Mould used for casting cement and aggregate specimens to determine potential expansive alkali reactivity. Made from durable mild steel with accurately machined faces, tight fittings, and a firm assembly. Available in single, two, and four-compartment models mounted on a rigid angle base plate. Supplied complete with base plate and stainless steel reference points. Standard sizes: 75×75×300 mm, 25×25×282 mm, and 75×75×285 mm.

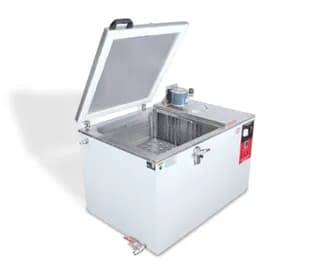

ACCELERATED CURING TANK
Accelerated Curing Tank designed to accommodate concrete cube moulds (capacities ranging from 3 to 36 cubes of 15 cm and various sizes), suitable for cement mortar cube moulds. Provides accelerated curing by boiling water method up to 100 ± 2°C and warm water curing at 55 ± 2°C, with provision for normal curing at 27 ± 2°C. Conforms to IS: 9013 and IS: 516 standards.
