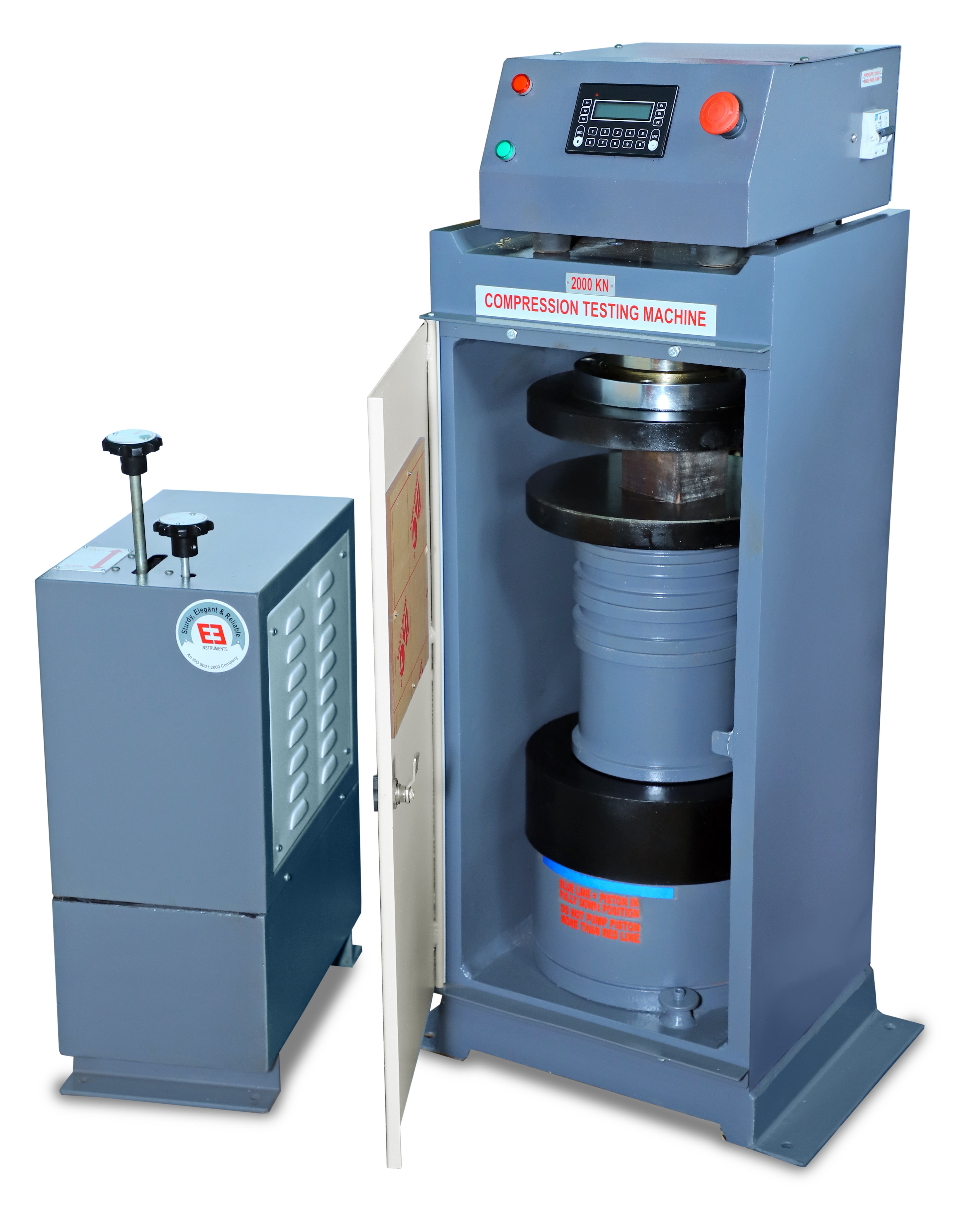

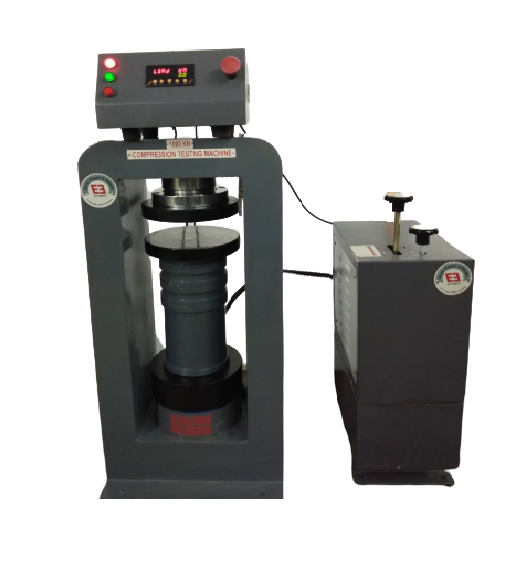

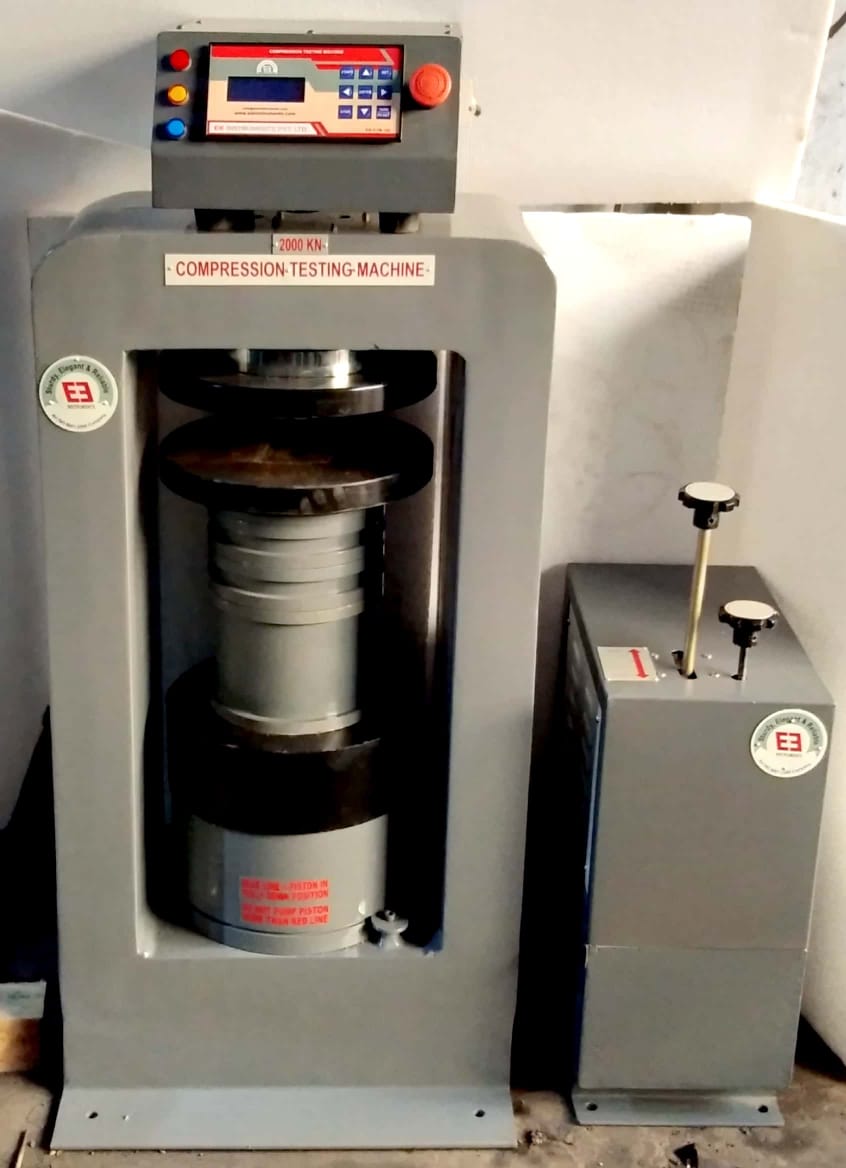

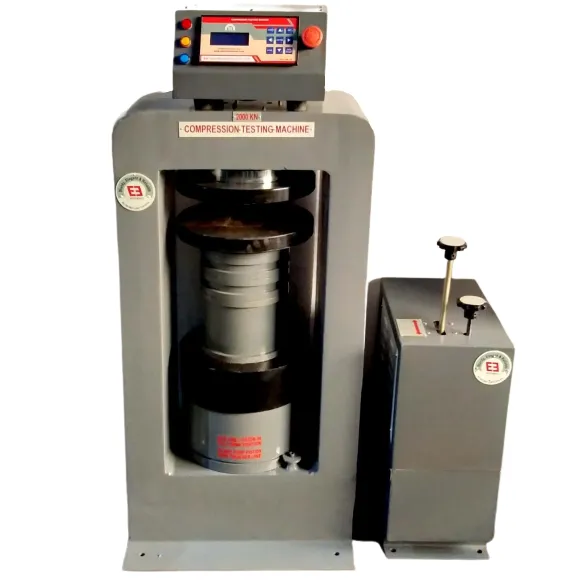

COMPRESSION TESTING MACHINE - ECONOMY DIGITAL
Model Number : TM-042ED.1000.0
The analog compression testing machine has been designed to meet the need for a simple and economic means to test concrete for its compressive strength. The compression machine is equipped with pressure gauge to observe the failure load. The pressure gauge is equipped with limit switch to trip the machine at max. load.
CTM CAPACITY
The Compression Testing Machine - Economy Digital is a robust and reliable piece of equipment designed for accurately measuring the compressive strength of materials. This machine is ideal for a variety of industries including construction, manufacturing, and materials science research. Its digital interface provides precise and easy-to-read measurements, making it a valuable tool for quality control and testing laboratories.
Key Features
- Digital Display: Clear and precise digital readout for easy measurement recording.
- High Accuracy: Provides accurate and consistent compression force measurements.
- Robust Construction: Built with durable materials to withstand heavy-duty use.
- User-Friendly Interface: Simple and intuitive controls for ease of operation.
- Adjustable Crosshead: Allows for testing of different sample sizes.
- Safety Features: Equipped with overload protection to prevent damage to the machine and ensure operator safety.
Technical Specifications
- Maximum Load Capacity: 1000 kN (kilonewtons)
- Load Resolution: 0.1 kN
- Platen Size: 300 mm x 300 mm
- Vertical Clearance: 400 mm
- Horizontal Clearance: 250 mm
- Power Supply: 220V, 50/60 Hz
- Dimensions: 800 mm x 600 mm x 1500 mm
- Weight: 450 kg
Applications
- Construction Materials: Testing the compressive strength of concrete, cement, and bricks.
- Metallurgy: Evaluating the compressive properties of metals and alloys.
- Plastic and Polymers: Determining the compressive strength of plastic components.
- Ceramics and Glass: Assessing the compressive strength of ceramic and glass products.
- Research and Development: Used in laboratories for various material testing and analysis.
Benefits
- Cost-Effective: An economical solution without compromising on quality and performance.
- Reliable Performance: Ensures accurate and reliable results for critical testing applications.
- Versatile Use: Suitable for a wide range of materials and industries.
- Ease of Maintenance: Designed for minimal maintenance, ensuring long-term use.
| Capacity | 2000 Kn |
|---|---|
| Platen size in mm | 300 mm dia |
| Ram Dia in mm | 205 mm |
| Ram Travel in mm | 50 mm |
| Vertical daylight in mm | 350 mm |
| Horizontal daylight in mm | 350 mm |
| Weight approx in kg | 760 Kg |
| Platen hardness | More than 550 Vickers hardness |
| Electric Motor | 1 HP, Single Phase |
| Operation on | 220 V AC Single Phase. |
| Least count | 0.1 KN or better |
| Pace rate control | Manual control from 1 KN/Sec to 20 KN/sec |
| Pumping | Motorized |
| Pump Speed | Dual speed |
| Motor | Induction Motor |
| Reading | Digital |
| Accuracy | ± 1% |
| Release valve operation | Required |
| Auto stop after failure of specimen | Available, machine stops after completion of test |
| Auto Release of Pressure after specimen failure | Not Available, Need to release pressure manually after the completion of test |
| Calculation of result | Automatic |
| Holding of Max.Load | Available |
| Pace Rate or Rate of Loading indication | Available |
| Operator skill to control Pace Rate | Required and very difficult to maintain |
| Bar Graph | Available |
| Multi Channel operation | 3 channel operation possible, flexural and compression frame can be attached |
| Load indication and Control | Digital membrane key pad controller |
| Saving of records | Possible-10 reading |
| Pen drive slot | Optional, saves reading in excel format, Record date-time, Sr no and Peak load |
| Real time graph | Not Applicable |
| Printer interface (Direct connectivity to printer w/o computer) | Available at extra cost |
| Computer operation software and data Acquisition software | Available at extra cost |
| Displacement controlled operation | Not Available |
| Modulus of Elasticity Calculation | Not Available |

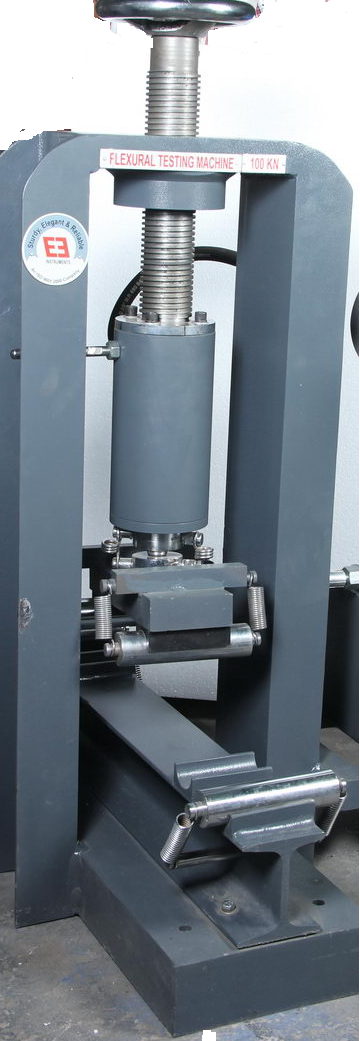

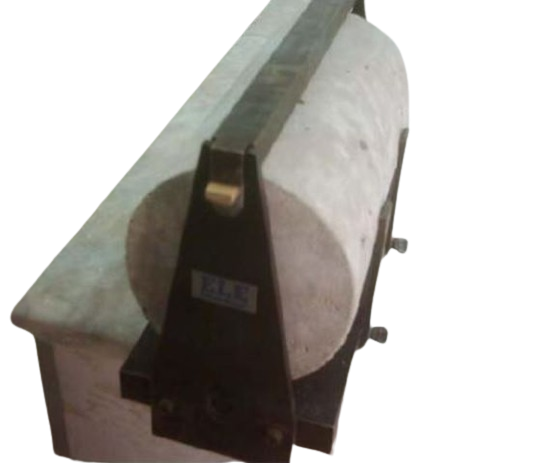

| Flexural attachment | Possible, all calculations will be made automatically |
| Splitting Tensile Test | Possible but manual calculation required |
| LAN Connectivity | Not Available |
| Auto internal Calibration without proving ring | Available |
| Piston over travel safety cut off | Available at extra cost |
| Over load safety cut off | Available |
| Shot circuit protection | Available |
